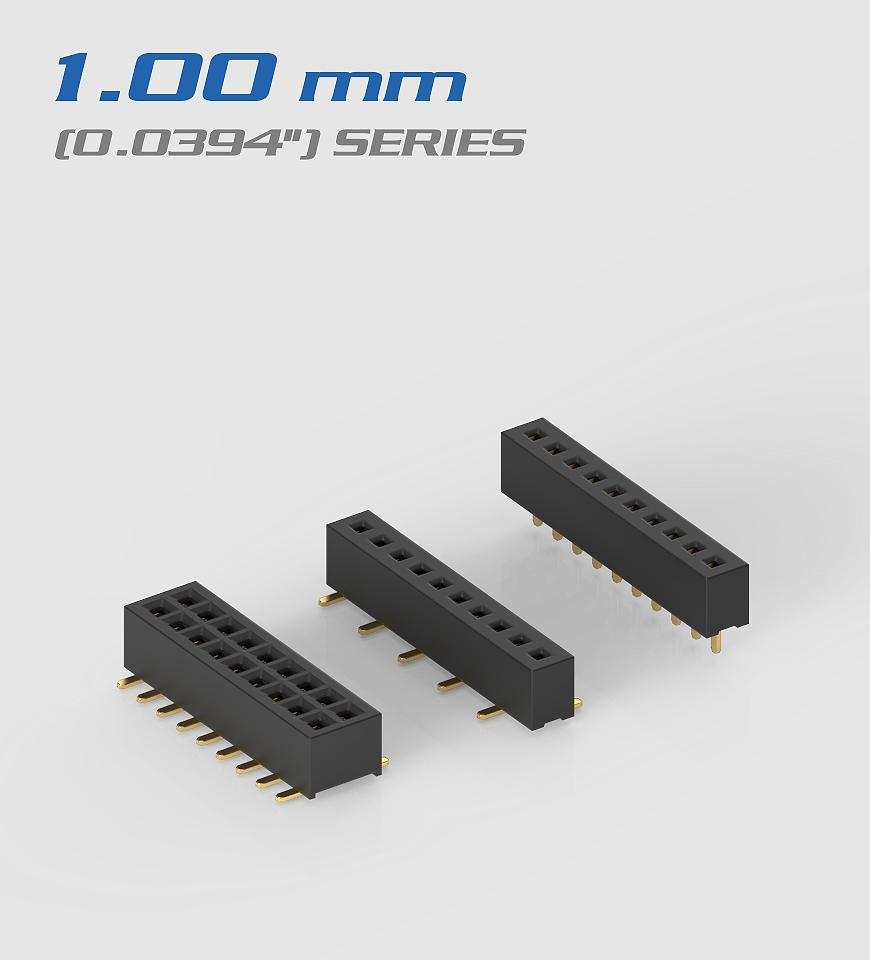

• 1.00mm(0.0394")Series

    1.00mm(0.0394")Series

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: LCP
    • Finish: Gold Plated
    • Standard: Gold Flash all over
  • 1.0 Female Header

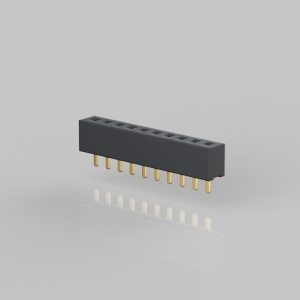

    F703-SGC-D011-XX

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 1.0 Female Header

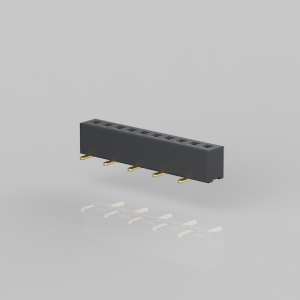

    F703-MGC-D029-XX-XT

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 1.0 Female Header

    F801-MGC-D039-XX

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • contact Resistance: 20 m ohm Max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃～+105℃
    • Max Processing Temp: 260℃ for 3 ～ 5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic.UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over nickel

    Inquiry Info. PDF

Total of 3 results
