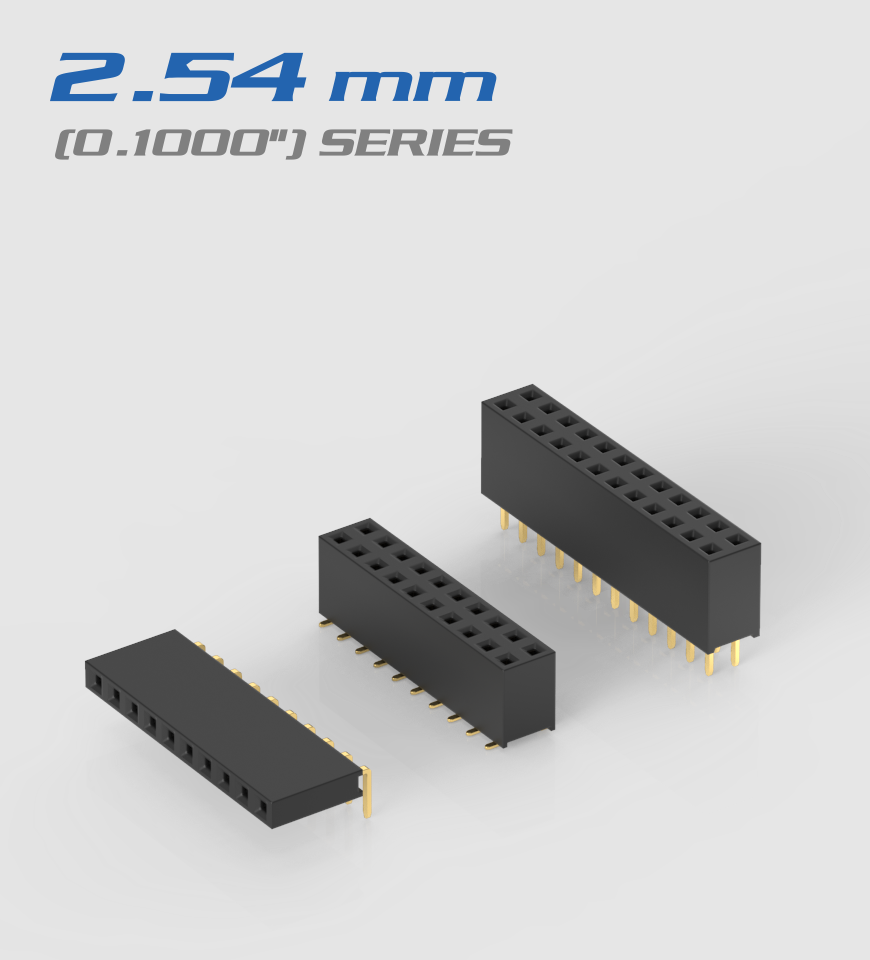

• 2.54mm(0.1000")Series

    2.54mm(0.1000")Series

    SPECIFICATIONS

    • Current Rating: 3.0 Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: PBT、Nylon-6TT
    • Finish: Gold Plated
    • Standard: Gold Flash all over
  • 2.54 Female Header

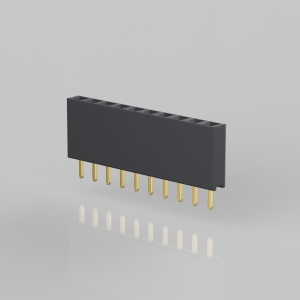

    F101-SG_-D030-XX

    SPECIFICATIONS

    • Current Rating: 3 Amp
    • Insulator Resistance: 500 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header

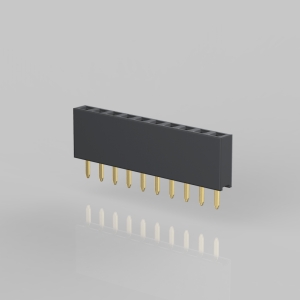

    F102-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header

    F103-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header

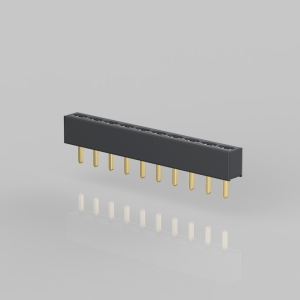

    F105-SGN-D025-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header

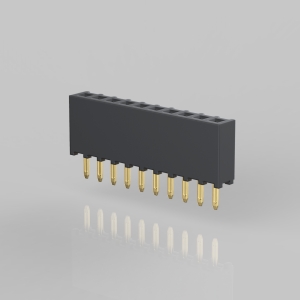

    F192-SGP-D035-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Insulator Material: Polyester, UL 94V-0
    • Contact Material: Phosphor Bronze
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header

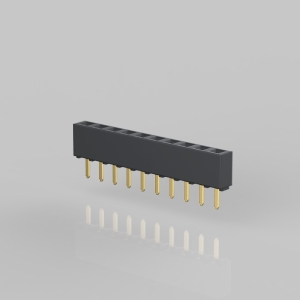

    F194-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Insulator Material: Polyester, UL 94V-0
    • Contact Material: Phosphor Bronze
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header 90°單排

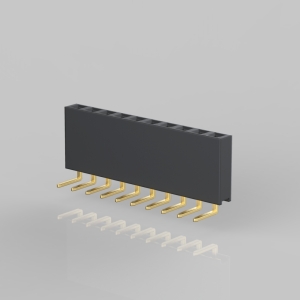

    F101-R1G_-D032-XX

    SPECIFICATIONS

    • Current Rating: 3 Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header 90°單排

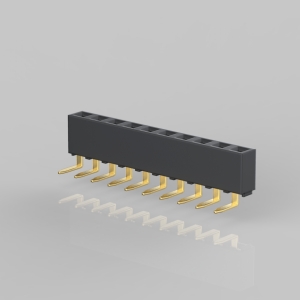

    F194-RG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Insulator Material: Polyester, UL 94V-0
    • Contact Material: Phosphor Bronze
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header SMT單排

    F102-MGN-D040-XX-XT

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Copper Alloy
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

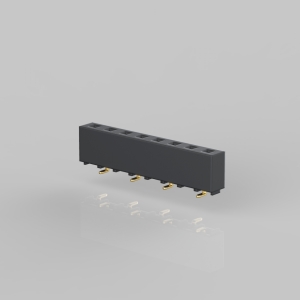

  • 2.54 Female Header SMT單排

    F194-MGN-D041-XX-XT

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Contact Plated: Full Gold,Full Tin, Selective Plated

    Inquiry Info. PDF

Total of 30 results
