• 2.54mm(0.1000")Series

    2.54mm(0.1000")Series

    SPECIFICATIONS

    • Current Rating: 3.0 Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: PBT、Nylon-6TT
    • Finish: Gold Plated
    • Standard: Gold Flash all over
  • 2.54 Female Header 180° 三排

    F031-SG_-D032-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: P.B.T.
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

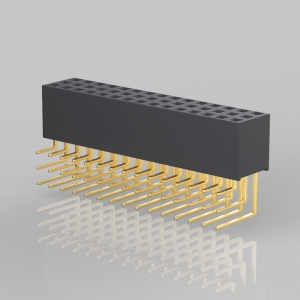

  • 2.54 Female Header 90°三排

    F031-RGN-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header 臥貼單排

    F101-KEN-D036-XX

    SPECIFICATIONS

    • Current Rating: 3Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyesterl, UL 94V-0
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 2.54 Female Header 90側插 單排

    F108-RG_-D030-XX

    SPECIFICATIONS

    • Current Rating: 3Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyesterl, UL 94V-0
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

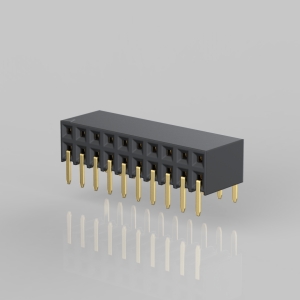

  • 2.54 Female Header 90側插 雙排

    F208-RGN-D030-XX

    SPECIFICATIONS

    • Current Rating: 3Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyesterl, UL 94V-0
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

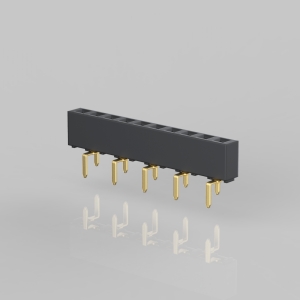

  • 2.54 Female Header 蜈蚣腳 單排

    F194-L2G_-D030-XX-XT

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

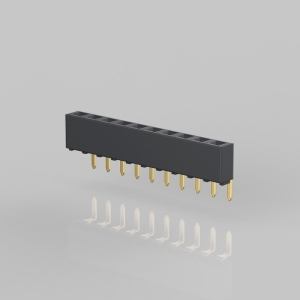

  • 2.54 Female Header 蜈蚣腳 單排

    F194-LG_-D030-XX

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

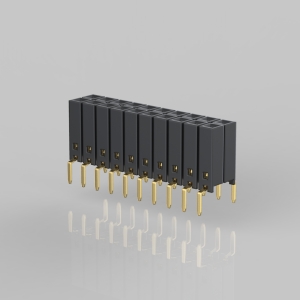

  • 2.54 Female Header 蜈蚣腳 雙排

    F201-L1G_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

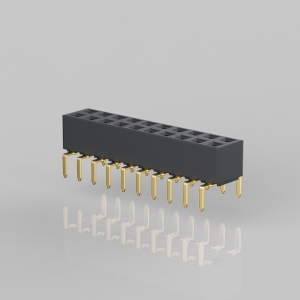

  • 2.54 Female Header 蜈蚣腳 雙排

    F294-L1GN-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

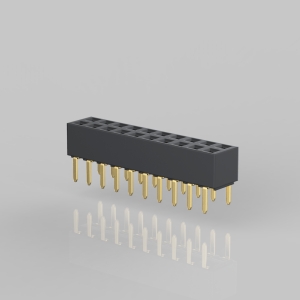

  • 2.54 Female Header 蜈蚣腳 雙排

    F294-L2G_-D032-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

Total of 30 results
