• 2.54mm(0.1000")Series

    2.54mm(0.1000")Series

    SPECIFICATIONS

    • Current Rating: 3.0 Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: PBT、Nylon-6TT
    • Finish: Gold Plated
    • Standard: Gold Flash all over

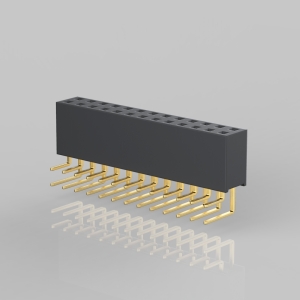

  • 2.54 Female Header 90°雙排

    F201-RG_-D032-XX

    SPECIFICATIONS

    • Current Rating: 3 Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Brass
    • Insulator Material: Polyesterl,UL 94V-0
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

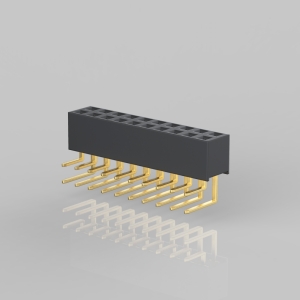

  • 2.54 Female Header 90°雙排

    F203-RG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

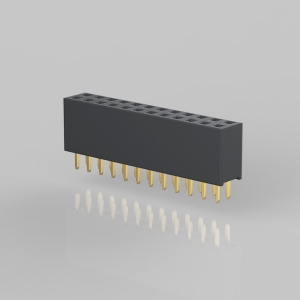

  • 2.54 Female Header 180°雙排

    F201-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over


    Note:

    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

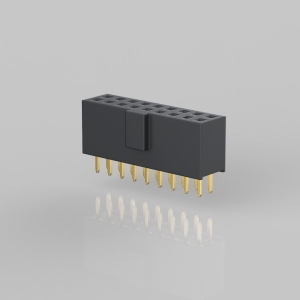

  • 2.54 Female Header 180°雙排

    F201-SG_-D032-XX-H

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

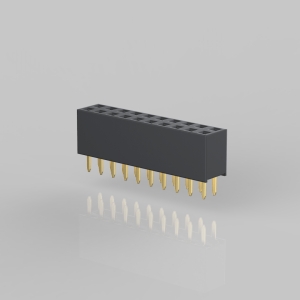

  • 2.54 Female Header

    F202-SG_-D030-XX

    Inquiry Info. PDF

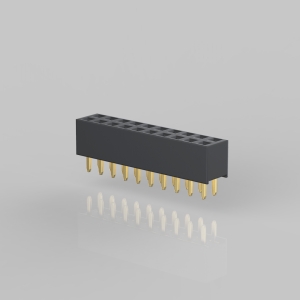

  • 2.54 Female Header

    F203-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

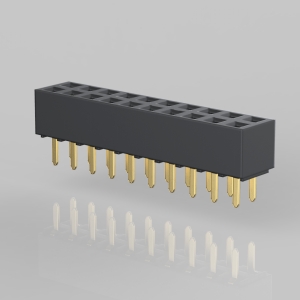

  • 2.54 Female Header 180°雙排

    F294-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

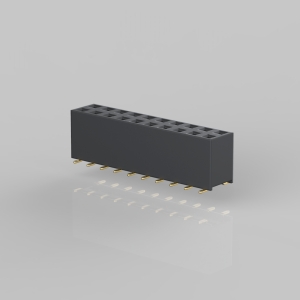

  • 2.54 Female Header SMT雙排

    F202-MGN-D066-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

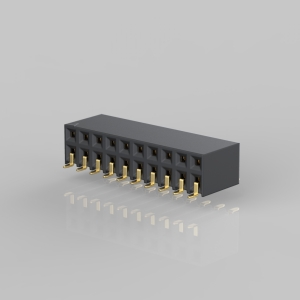

  • 2.54 Female Header SMT雙排

    F208-MGN-D112-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

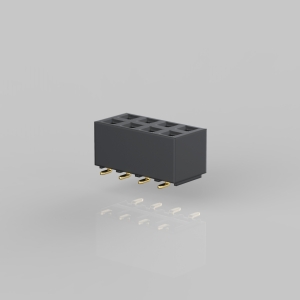

  • 2.54 Female Header SMT雙排

    F294-MGN-D065-XX

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

Total of 30 results
