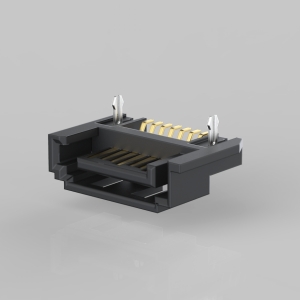

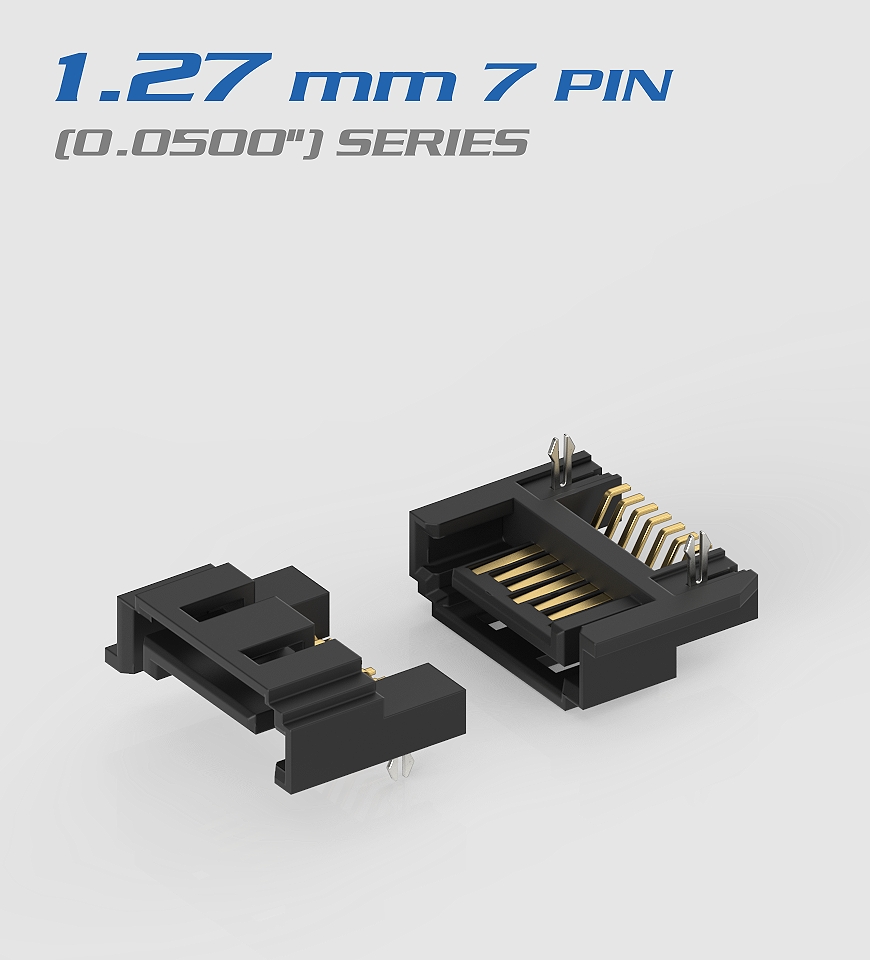

1.27mm 7Pin (0.0500") Series

SPECIFICATIONS

• Electrical : 1.0 Amp
• Reted Current : 1000MΩMin
• Contact resistance : 30mΩMax
• Dielectric witstanding voltage : AC 750V for 1 minute
• Operating temperature : -40°C ～ +85℃
• Insulator material : Glass-filled Thermoplastic
• Color : Black(UL94V-0)
• Contact material : Brass Gold on Contact area, Tin/Lead on soldering area, all over nickel
