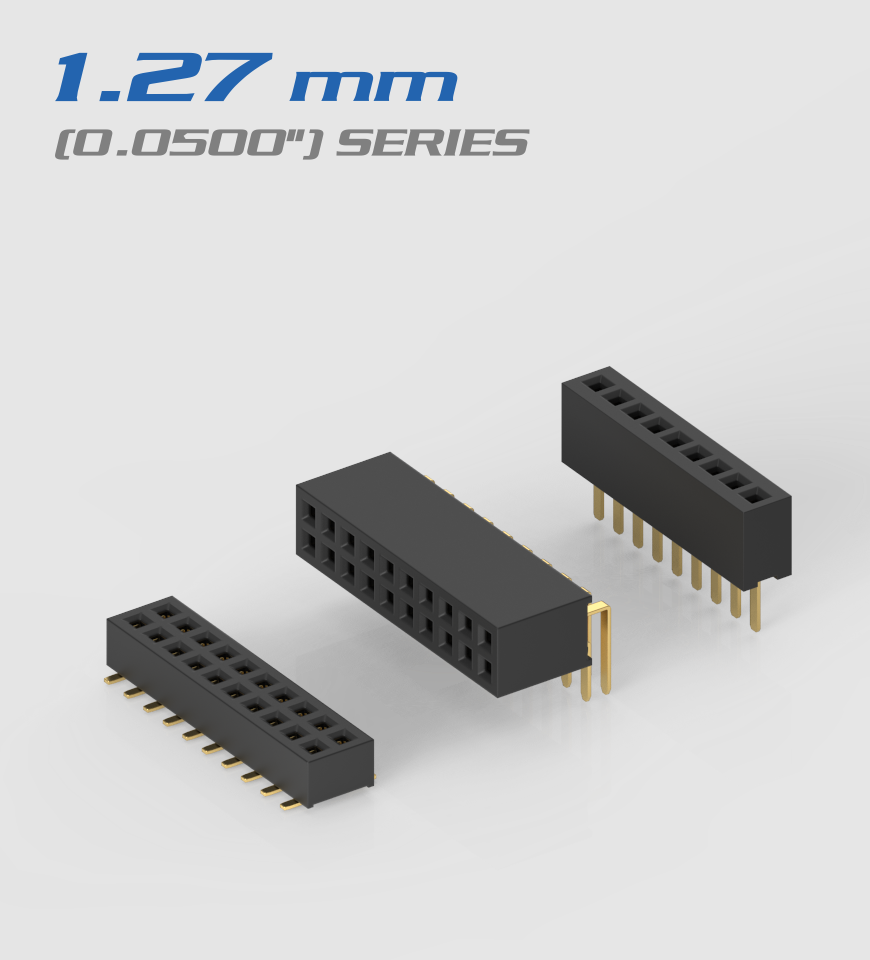

• 1.27mm(0.0500")Series

    1.27mm(0.0500")Series

    SPECIFICATIONS

    • Current Rating: 1.0 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

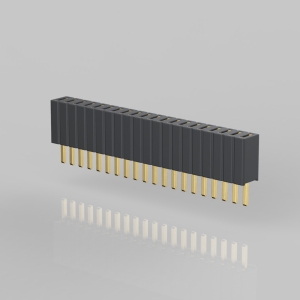

  • 1.27 Female Header 180°單排

    F501-SGN-D024-XX

    SPECIFICATIONS

    • Current rating: 1 Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

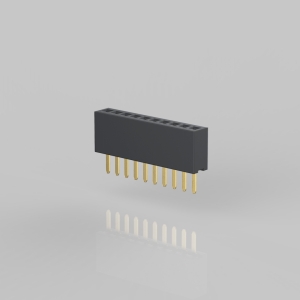

  • 1.27 Female Header 180°單排

    F503-SGN-D024-XX

    SPECIFICATIONS

    • Current rating: 1 Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

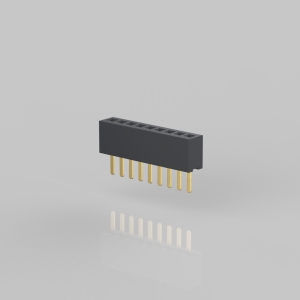

  • 1.27 Female Header 180°單排

    F504-SGN-D024-XX

    SPECIFICATIONS

    • Current rating: 1 Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

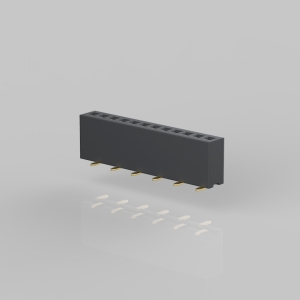

  • 1.27 Female Header SMT單排

    F503-MGN-D037-XX-XT

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

  • 1.27 Female Header SMT單排

    F504-MGN-D034-XX-XT

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

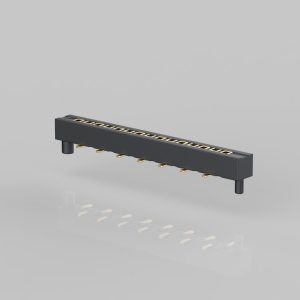

  • 1.27 Female Header SMT單排

    F507-MGN-D030-XX-XT

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

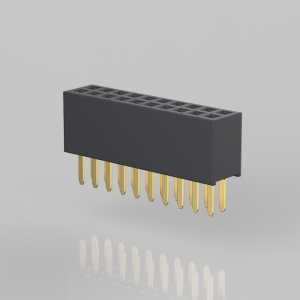

  • 1.27 Female Header 180°雙排

    F603-SGN-D024-XX

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

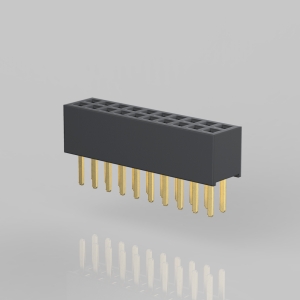

  • 1.27 Female Header 180°雙排

    F604-SGN-D024-XX

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

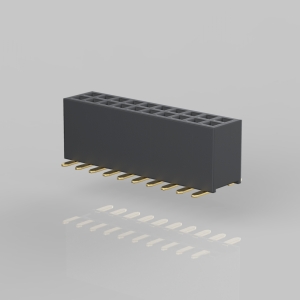

  • 1.27 Female Header SMT雙排

    F603-MXX-D051-XX

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

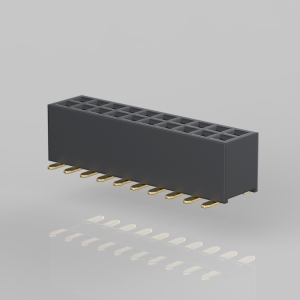

  • 1.27 Female Header SMT雙排

    F604-MGN-D047-XX

    SPECIFICATIONS

    • Current rating: 1Amp
    • Insulator resistance: 1000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260°C for 3~5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

Total of 13 results
