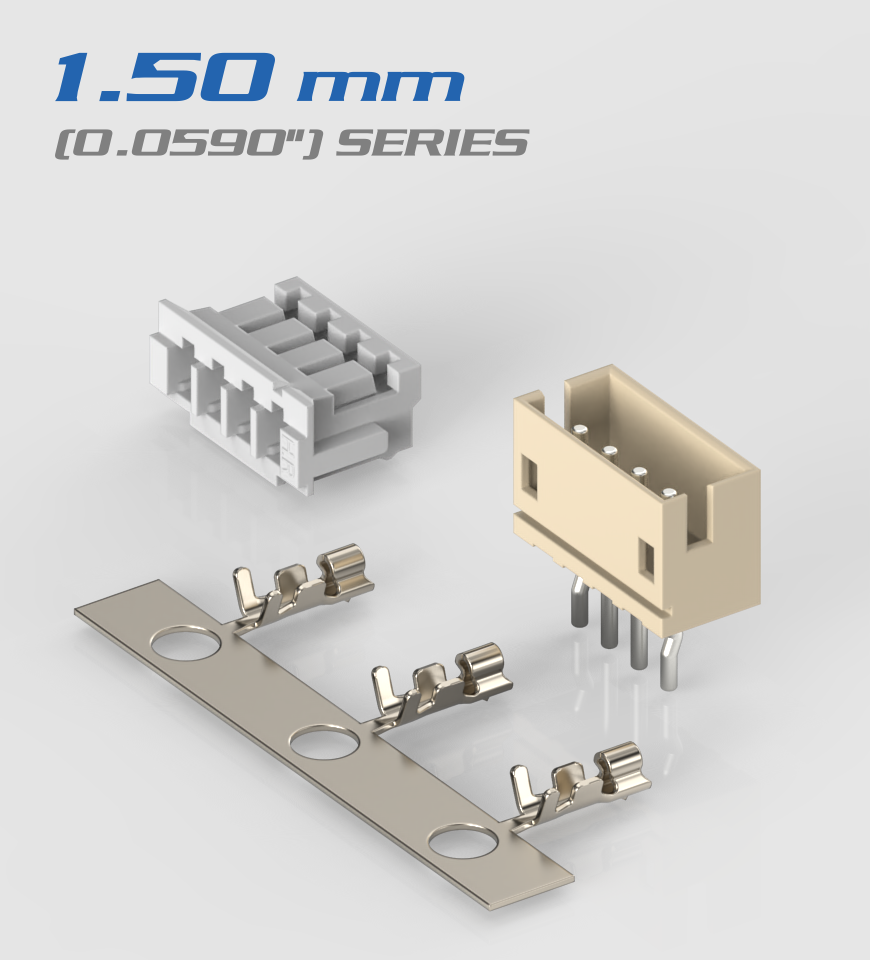

1.50mm(0.0590")Series

• Current rang: 1A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 500MΩMin
• Withstanding voltage: 500V AC/minute
• Pin Material :Brass
• Finished :Tin-plated
• Housing Material: Nylon-66、UL94V-0
• Color: GREY

• Current rang: 1A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 500MΩMin
• Withstanding voltage: 500V AC/minute
• Pin Material :Brass
• Finished: Tin-plated
• Housing Material: Nylon-66,UL94V-0
• Color: GRAY

SPECIFICATIONS

• Current rang: 1A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 500MΩMin
• Withstanding voltage: 500V AC/minute
• Finished: Tin-plated
• Housing Material: Nylon-66、Nylon-6T,UL94V-0
• Color: GREY

SPECIFICATIONS

• Current rating: 1A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 500MΩMin
• Withstanding voltage: 500V AC/minute
• Finished: Tin-plated
• Housing Material: Nylon-66、Nylon-6T,UL94V-0
• Color: BEIGE

SPECIFICATIONS

• Current rating: 1A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 500MΩMin
• Withstanding voltage: 500V AC/minute
• Finished: Tin-plated
• Housing Material: Nylon-66、Nylon-6T,UL94V-0
• Color: BEIGE

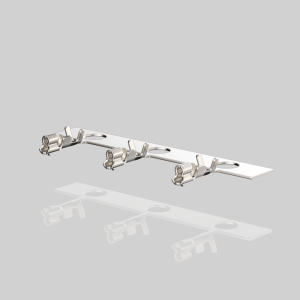

Specifications & Ordering Information:

• Part No: CZ-T1502
• Material: Phosphor Bronze
• Wire Range: AWG #26～32
• Insulation O.D:1.10mm(max)
• Finish: Tin-Plated
• Qty/reel: 15.000PCS
