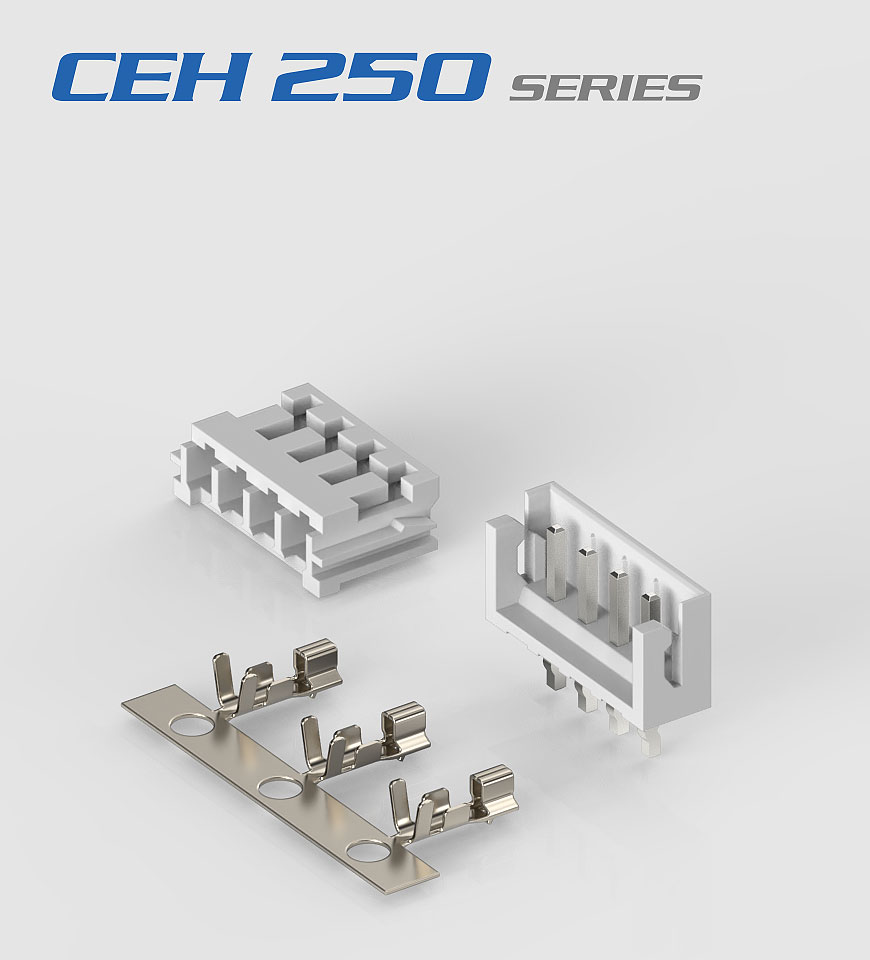

CEH 250 Series

SPECIFICATIONS

• Current rating: 2.5A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 10mΩMax
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 800V AC/minute
• Finished: Tin-plated
• Housing Material: NL-66,UL94V-0
• Color: Ivory-White

SPECIFICATIONS

• Current rating: 2.5A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: 25°C~+85°C
• Contact resistance: 10mΩMax
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 800V AC/minute
• Finished: Tin-plated
• Housing Material: PA-66,UL94V-0
• Color: Ivory-White

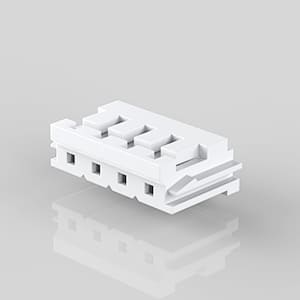

SPECIFICATIONS

• Current rating: 3A
• Voltage rating: 250V
• Contact resistance: Initial Value/10mΩ max
• After Environmental testing/20mΩ max.
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 800V AC/minute
• Applicable Wire : AWG#22 to #30


FEATURES

• Available number of circuits 2 to 15
• Material: Nylon-66,UL94V-0

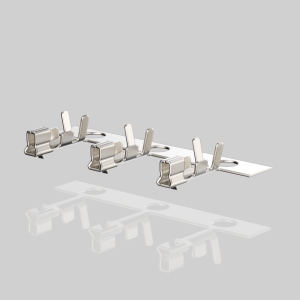

Specifications & Ordering Information:

• Part No: CE-T2501
• Thickness: 0.2
• Material: Phosphor Bronze
• Wire Range: AWG #22～28
• Insulation O.D:1.6~1.2mm
• Finish: Pre.Tin-Plated
• Qty/reel: 10,000 PCS
