• 0.50mm(0.0197")Series

    0.50mm(0.0197")Series

    SPECIFICATIONS

    • No.Of Contacts:04~60
    • Type Of Entry:Top ,Bottom,Vertical
    • Contact Plating:Gold Flash,Tin

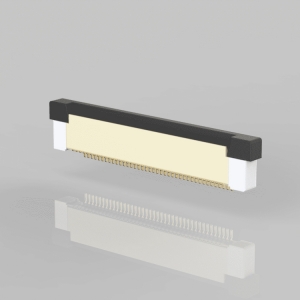

  • FPC320U0XX-CXX-CF1337

    SPECIFICATIONS
    Electrical Characteristics:

    • Current rating: 0.5A AC/DC
    • Voltage rating: 50V AC/DC
    • Temperature range: -25℃ ～ +85℃
    • Withstand Voltage: 500V AC/Minute
    • Contact Resistance: ≦30mΩ
    • Insulation resistance: ≧500MΩ
    • Relative Humidity: 95% Max.


    Material Description:

    • Contact: Phosphor Bronze, Tin or Gold Plated
    • Solder Tab: Brass, Tin Plated
    • Housing: LCP UL94V-0
    • Slider: LCP UL94V-0
