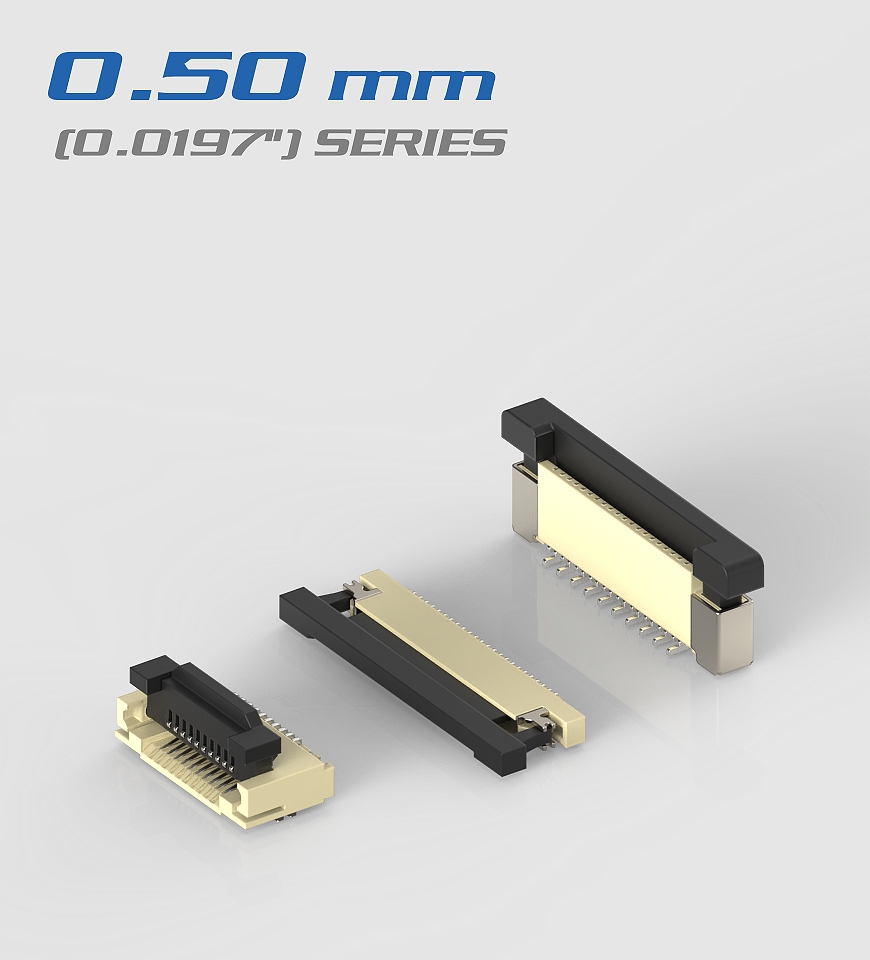

0.50mm(0.0197")Series

SPECIFICATIONS
Material:

• HOUSING: LCP, UL 94-V0, COLOR:WHITE.
• COVER: LCP, UL 94-V0, COLOR:Black.
• CONTACT: PHOSPHOR BRONZE.
• LEG: BRASS.


Platingl:

• CONTACT: GOLD PLATED ON NICKEL OVERALL.
• LEG: TIN PLATED ON NICKEL OVERALL.


Rating:

• CURRENT RATING: 0.4A AC/DC.
• VOLTAGE RATING: 50V AC/DC.
• TEMPERATURE RANGE: -40˚C~+85˚C.

SPECIFICATIONS
Electrical Characteristics:

• Current rating: 0.4A AC/DC
• Voltage rating: 50V AC/DC
• Temperature range: -25°C~+85°C
• Withstand Voltage: 500V AC/Minute
• Contact Resistance: ≤30mΩ
• Insulation resistance: 500MΩ
• Relative Humidity: 93%+40°C


Material Description:

• Terminal: Phosphor Bronze/Tin-plated
• Fitting Nail: Brass/Tin-plated
• Housing: LCP UL94V-0,Volor:Natural
• Slider: LCP UL94V-0,Color:Black

SPECIFICATIONS
Material:

• Housing: PA46 or LCP UL94-V0 , Color:Natural.
• Contact: Phosphor Bronze.
• LEG: Brass.


Platingl:

• Contact: Gold flash over Nickel.
• LEG: Gold flash over Nickel.


Rating:

• Operating Voltage: 50V AC/DC.
• Current Rating: 0.5A AC/DC.
• Operating Temperature: -40℃ ～ +80℃


Packing: Tape & Reel

SPECIFICATIONS
Material:

• HOUSING: LCP UL 94-V0,COLOR:NATURAL.
• COVER: LCP UL 94-V0,COLOR:BLACK.
• CONTACT: PHOSPHOR BRONZE.
• LEG: BRASS.


Platingl:

• CONTACT: GOLD OR TIN PLATED ON NICKEL OVERALL.
• LEG: TIN PLATED ON NICKEL OVERALL.


Rating:

• CURRENT RATING: 0.5A AC/DC
• VOLTAGE RATING: 25V AC/DC
• TEMPERATURE RANGE: -25 °C~+85°C

SPECIFICATIONS
Material:

• HOUSING: PA46 or LCP UL 94-V0,Color:Natural
• CONTACTS: BRASS
• LEG: BRASS


Platingl:

• CONTACTS:TIN OVER NICKEL
• LEG:TIN OVER NICKEL


Rating:

• Operating Voltage: 50V AC/DC
• Current Rating: 0.5A AC/DC
• Operating Temperature: -40°C~+85°C


Packing: TAPE & REEL

SPECIFICATIONS
Material:

• Housing: LCP UL94-V0 Color:Natural.
• Actuator: LCP UL94-V0 Color:Black.
• Contact: Phosphor Bronze.
• LEG: Brass.


Platingl:

• Contact: Matte Tin Or Gold Plating Nickel Overall .
• LEG: Matte Tin Plating Over Nickel.


Rating:

• Operating Voltage: 50V AC/DC.
• Current Rating: 0.4A AC/DC.
• Operating Temperature: -25˚C~+85˚C.

SPECIFICATIONS
Electrical Characteristics:

• Current rating: 0.5A AC/DC
• Voltage rating: 50V AC/DC
• Temperature range: -25℃ ～ +85℃
• Withstand Voltage: 500V AC/Minute
• Contact Resistance: ≦30mΩ
• Insulation resistance: ≧500MΩ
• Relative Humidity: 95% Max.


Material Description:

• Contact: Phosphor Bronze, Tin Plated
• Solder Tab: Brass, Tin Plated
• Housing: LCP UL94V-0, Color:Natural
• Slider: LCP UL94V-0, Color:Black
