• 1.0mm(0.0394")Series

    1.0mm(0.0394")Series

    SPECIFICATIONS

    • No.Of Contacts:13~73
    • Type Of Entry:Top ,Bottom
    • Contact Plating:Gold Flash

  • FPC228N3XX-N1TX

    SPECIFICATIONS

    • Poles: 4~30
    • Voltage rating: AC, DC, 200V(50HZ)/ AC, DC, 50V(200HZ)
    • Current rating: 0.4A, AC/DC
    • Withstand voltage: 200V AC/minutes
    • Working Temperature: -25°C~ +85°C
    • Insulation resistance: >500MΩ
    • Contact resistance: <0.02Ω
    • Terminal material: Phosphor Bronze/Tin-Plated
    • Housing material: PA9T UL94V-0, Color: Black

    Inquiry Info. PDF

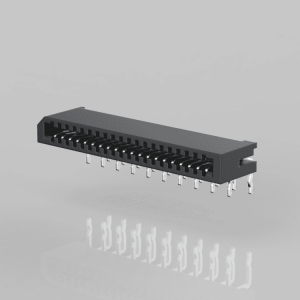

  • FPC228NXXX-N1TT

    SPECIFICATIONS

    • Poles : 4~30
    • Voltage rating : AC, DC, 200V(50HZ)/ AC, DC, 50V(200HZ)
    • Current rating : 0.4A, AC/DC
    • Withstand voltage : 200V AC/minutes
    • Working Temperature : -25°C~ +85°C
    • Insulation resistance : >500MΩ
    • Contact resistance : <0.02Ω
    • Terminal material : Phosphor Bronze/Tin-Plated
    • Housing material : Tube

    Inquiry Info. PDF

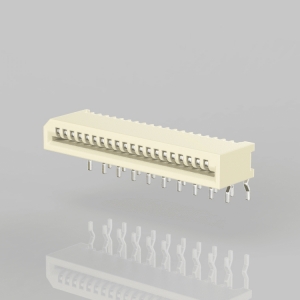

  • FPC234NXXX-ATT

    SPECIFICATIONS

    • Poles: 4~30
    • Voltage rating: AC, DC, 50V(200HZ)
    • Current rating: 0.5A, AC/DC
    • Withstand voltage: 500V AC/minutes
    • Working Temperature: -25°C~ +85°C
    • Insulation resistance: >800MΩ
    • Contact resistance: <0.02Ω
    • Terminal material: Phosphor Bronze/Tin-Plated
    • Housing material: PA46 UL94V-0, Color:Natural
    • Packing: Tube

    Inquiry Info. PDF

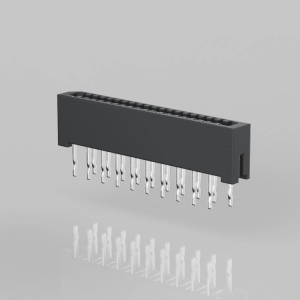

  • FPC255MXXX-N1TT

    SPECIFICATIONS

    • Poles: 4~30
    • Voltage rating: AC, DC, 200V(50HZ)/ AC, DC, 50V(200HZ)
    • Current rating: 0.4A, AC/DC
    • Withstand voltage: 200V AC/minutes
    • Working Temperature: -25℃~ +85℃
    • Insulation resistance: >500MΩ
    • Contact resistance: <0.02Ω
    • Terminal material: Phosphor Bronze/Tin-Plated
    • Housing material: PA9T UL94V-0,Color: Black
    • Packing: Tube

    Inquiry Info. PDF

Total of 14 results
