Wire to Board Connector

1.25mm(0.0492")Series

CGH 125 Series
SPECIFICATIONS
- Current rating: 1A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -20°C~+85°C
- Contact resistance: 30mΩ/Max.
- Insulation resistance: 100MΩ/Min.
- Withstanding voltage: 500V AC/min.
- Wire Range: AWG #26 to #30

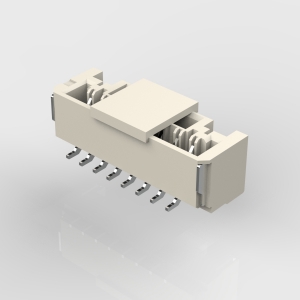

CGH-H125-XX

Inquiry Info. PDF

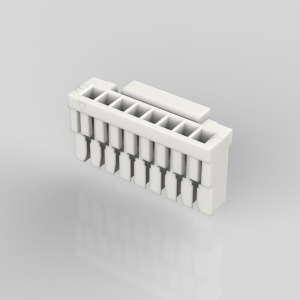

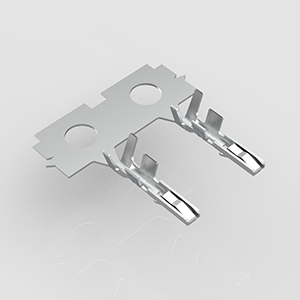

CGH-T125

Inquiry Info. PDF

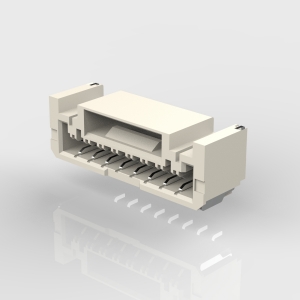

CGH-W125R-XX-SMTR

Inquiry Info. PDF
CGH-W125-XX-SMTRC

Inquiry Info. PDF

Total of 4 results
