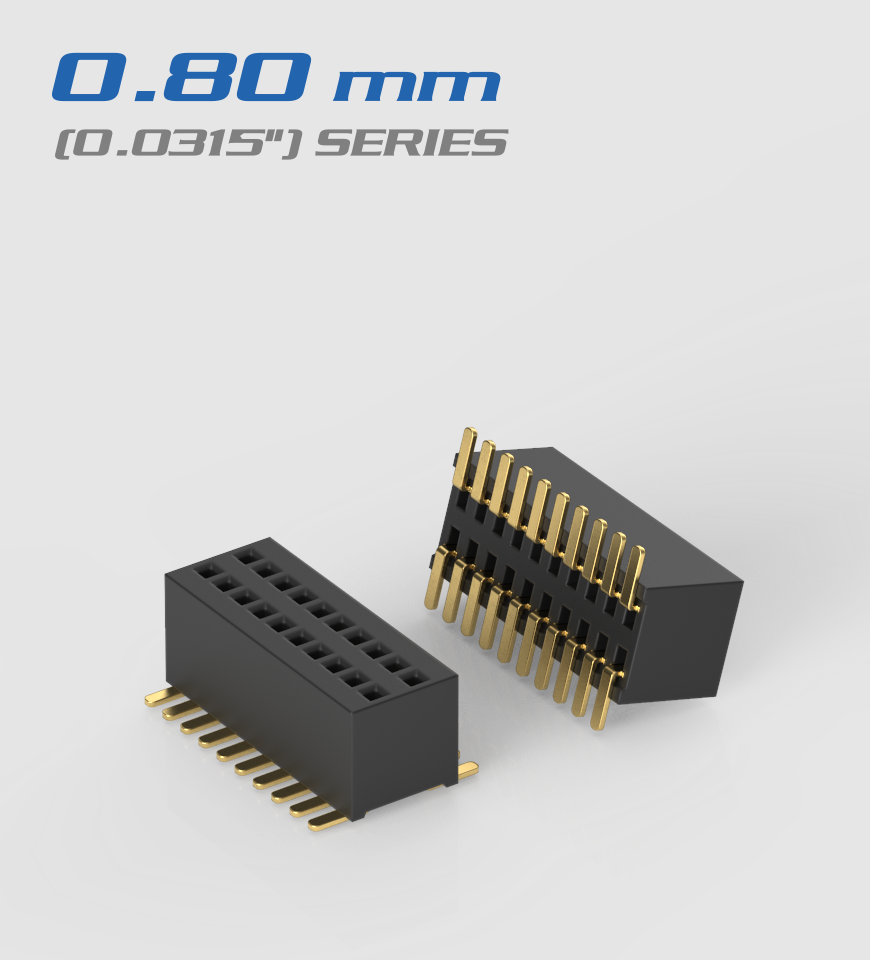

• 0.80mm(0.0315")Series

    0.80mm(0.0315")Series

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 800 Megohms Min.
    • Contact Resistance: 20 m ohm Max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃～+105℃
    • Max Processing Temp: 260℃ for 3 ～ 5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic.UL 94V-0
    • Standard: LCP
    • Finish: Gold Plated
    • Standard: Gold Flash all over

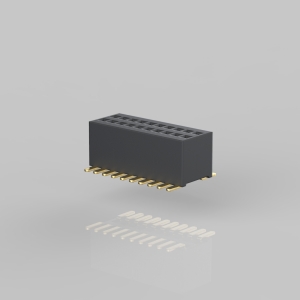

  • 0.8 Female Header

    F901-MGC-D050-XX

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 800 Megohms Min.
    • contact Resistance: 20 m ohm Max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃～+105℃
    • Max Processing Temp: 260℃ for 3 ～ 5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic.UL 94V-0
    • Standard: LCP
    • Finish: Gold Plated
    • Standard: Gold Flash all over


    Inquiry Info. PDF

Total of 1 results
