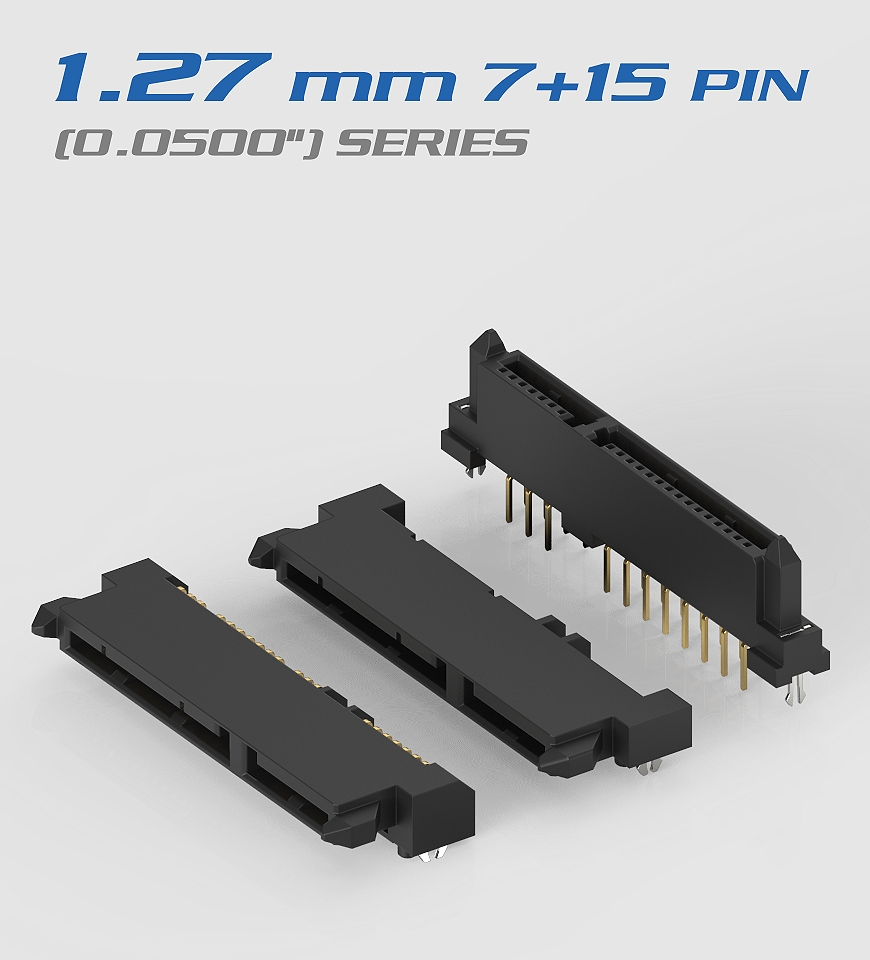

1.27mm 7+15Pin (0.0500") Series

SPECIFICATIONS
Electrical Characteristics:

• Reted Current : 1.0 AMP
• Insulation Rresistance : 1000MΩMin
• Contact resistance : 30mΩMax
• Dielectric witstanding voltage : AC 750V for 1 MINUTE
• Operating temperature : -40℃~+85℃


Material Description:

• Insulation material : Glass-filled Thermoplastic
• Color : BLACK(UL94V-0)
• Contact material : Brass
• Gold on Contact area,Tin/Lead on soldering area, all over nickel

SPECIFICATIONS
Electrical Characteristics:

• RATED CURRENT: 1.0 Amp
• INSULATION RECICTANCE: 1000 MΩMin.
• CONTACT RESISTANCE: 30 mΩMax.
• DIELECTRIC WITSTANDING VOLTAGE: AC 750V FOR 1MINUTE
• OPERATING TEMPERATURE: -40°C~+85°C


Material Description:

• INSULATOR MATERIAL: GLASS-FILLED, THERMOPLASTIC
• COLOR: BLACK (UL94V-0)
• CONTACT MATERIAL: PHOSPHOR BRONZE
• BOARD LOCK: BRASS
• GOLD ON CONTACT AREA,TIN/LEAD ON SOLDERING AREA, ALL OVER NICKEL

SPECIFICATIONS
Electrical Characteristics:

• Reted Current : 1.0 AMP
• Insulation Rresistance : 1000MΩMin
• Contact resistance : 30mΩMax
• Dielectric witstanding voltage : AC 750V for 1 MINUTE
• Operating temperature : -40℃~+85℃


Material Description:

• Insulation material : Glass-filled Thermoplastic
• Color : BLACK(UL94V-0)
• Contact material : Brass
• Gold on Contact area,Tin/Lead on soldering area, all over nickel
