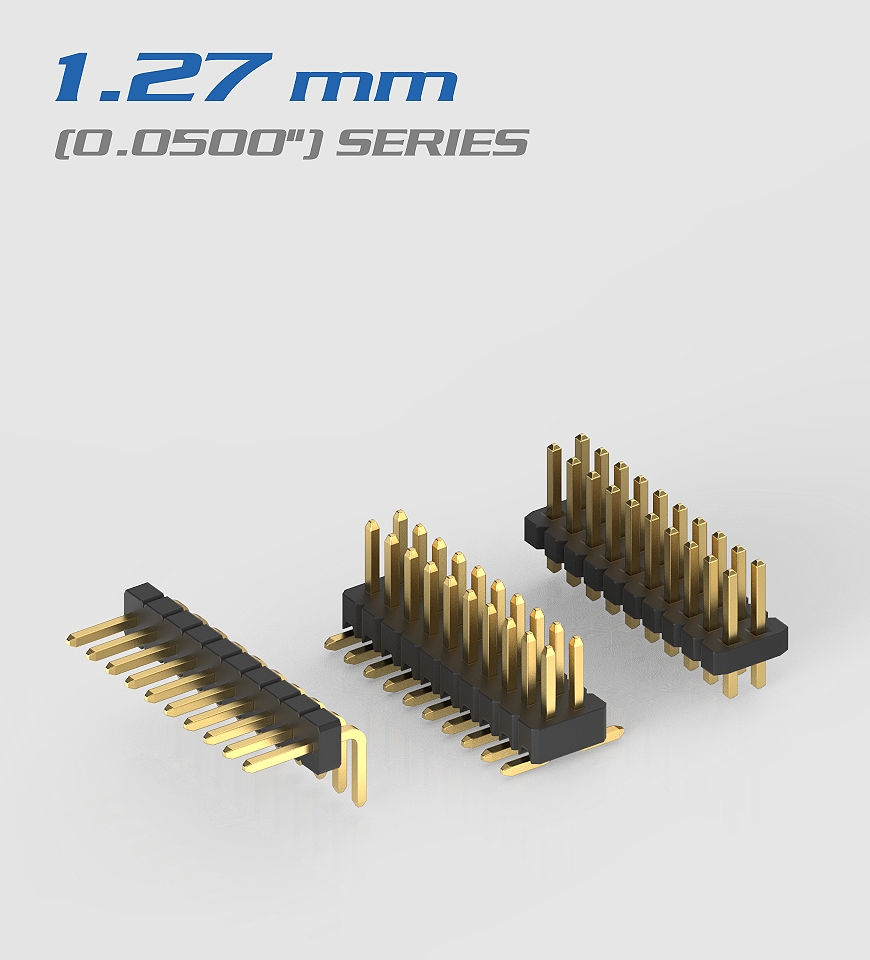

• 1.27mm(0.0500")Series

    1.27mm(0.0500")Series

    SPECIFICATIONS

    • Current Rating: 1.0 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Copper Alloy
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

  • P50X-MXXX-XXX-XX-XT

    Inquiry Info. PDF

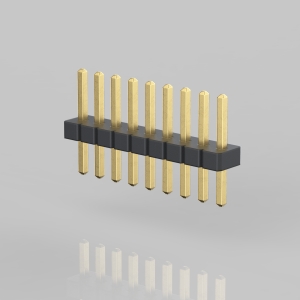

  • 1.27mm(0.05")Pitch Pin Header Series

    P505-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Dielectric Withstanding :AC 500 V
    • Operating Temperature :-40℃ 〜 +105℃
    • Contact Material :Copper Alloy
    • Insulator Material :Polyester,UL 94V-0
    • Standard :Nylon-6T
    • Finish :Gold Plated
    • Standard :Gold Flash all over

    Inquiry Info. PDF

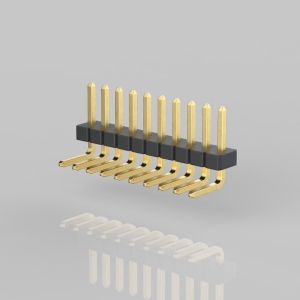

  • 1.27mm(0.05")Pitch Pin Header Series

    P505-R3GN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Dielectric Withstanding :AC 500 V
    • Operating Temperature :-40℃ 〜 +105℃
    • Contact Material :Copper Alloy
    • Insulator Material :Polyester,UL 94V-0
    • Standard :Nylon-6T
    • Finish :Gold Plated
    • Standard :Gold Flash all over

    Inquiry Info. PDF

  • P60X-MXXX-XXX-XX

    Inquiry Info. PDF

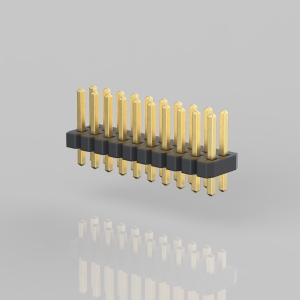

  • 1.27mm(0.05")Pitch Pin Header Series

    P605-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Dielectric Withstanding :AC 500 V
    • Operating Temperature :-40 °C 〜 +105℃
    • Contact Material :Copper Alloy
    • Insulator Material :Polyester,UL 94V-0
    • Standard :Nylon-6T
    • Finish :Gold Plated
    • Standard :Gold Flash all over

    Inquiry Info. PDF

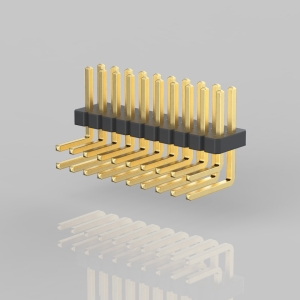

  • 1.27mm(0.05")Pitch Pin Header Series

    P605-R3GN-030_023-XX

    SPECIFICATIONS

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Dielectric Withstanding :AC 500 V
    • Operating Temperature :-40℃ 〜 +105℃
    • Contact Material :Copper Alloy
    • Insulator Material :Polyester,UL 94V-0
    • Standard :Nylon-6T
    • Finish :Gold Plated
    • Standard :Gold Flash all over

    Inquiry Info. PDF

Total of 6 results
