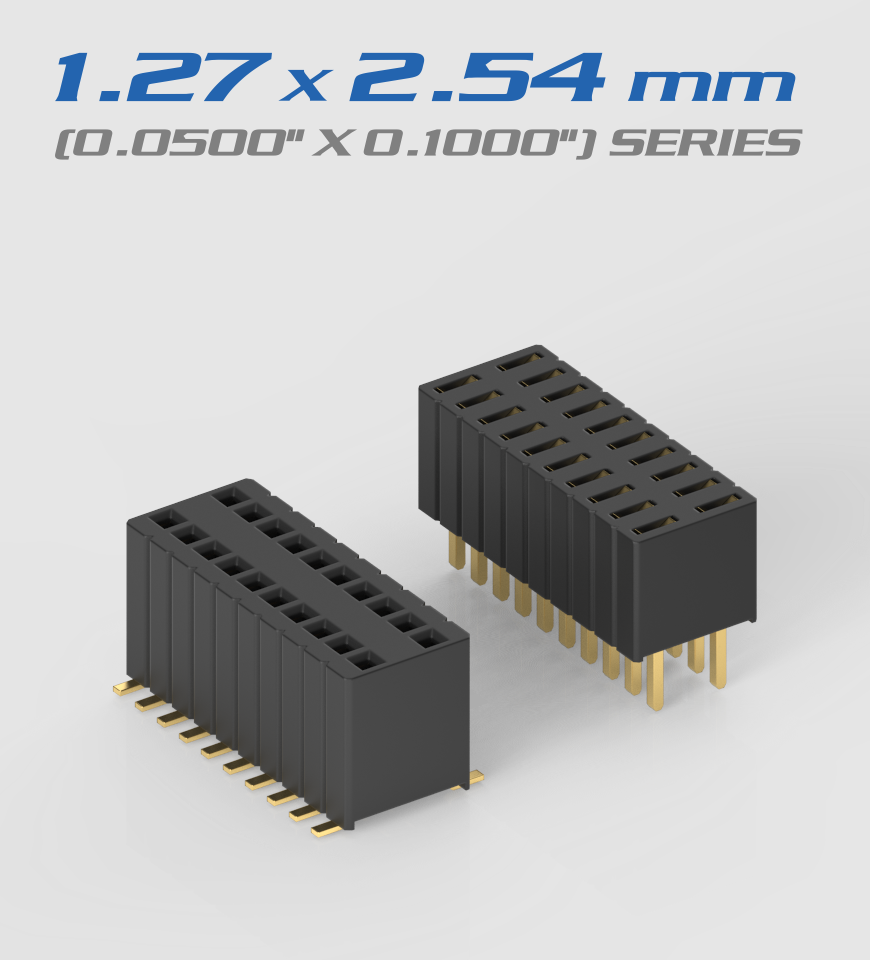

• 1.27 x 2.54mm(0.0500" x 0.1000")Series

    1.27 x 2.54mm(0.0500" x 0.1000")Series

    SPECIFICATIONS

    • Current Rating: 1.0 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

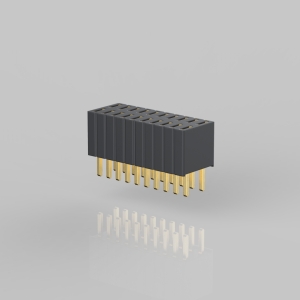

  • F609-SGN-D024-XX

    SPECIFICATIONS

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 Milliohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all Nickel

    Inquiry Info. PDF

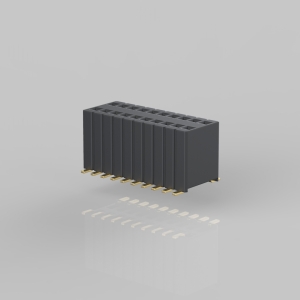

  • F611-MGN-D067-XX

    SPECIFICATIONS

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 Milliohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Max Processing Temp: 260℃ for 3 ~ 5 sec Max.
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Contact Plated: Full Gold, Full Tin, Selective Plated
    • Standard: Gold Flash all Nickel

    Inquiry Info. PDF

Total of 2 results
