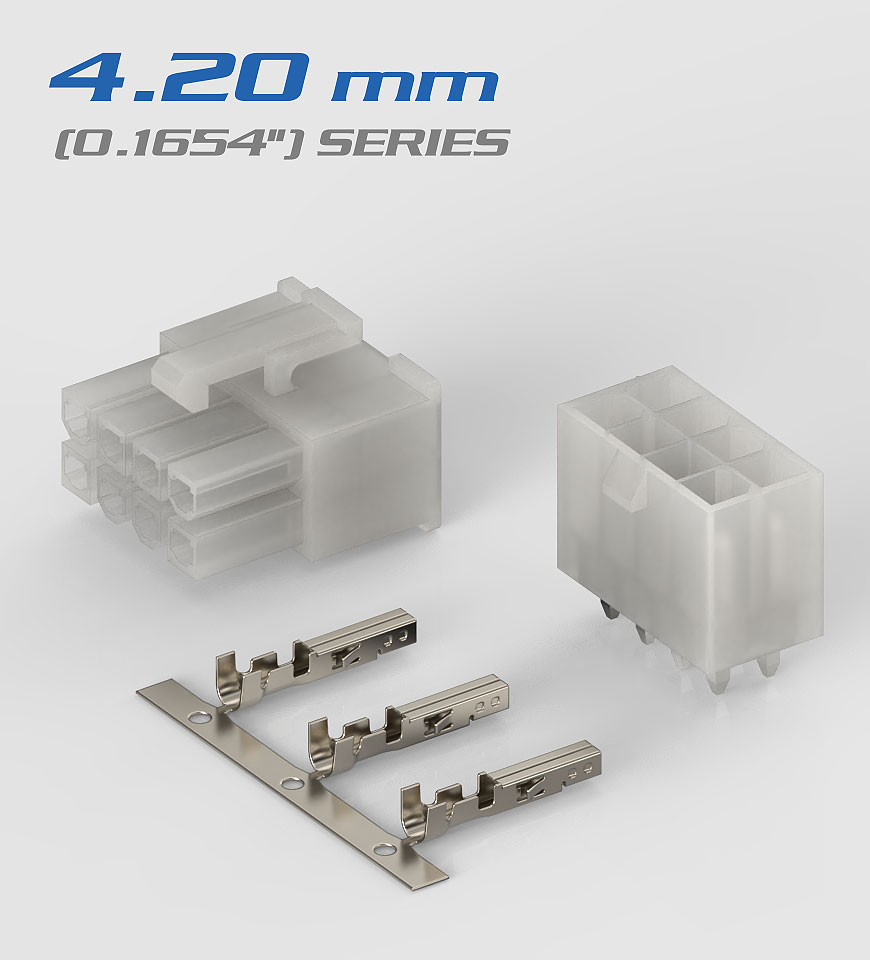

• 4.20mm (0.1654")Series

    4.20mm (0.1654")Series

    SPECIFICATIONS

    • Current rating: 9A AC, DC
    • Voltage rating: 600V AC, DC
    • Temperature range: -40°C~+105°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Wire Range: AWG #18 to #24

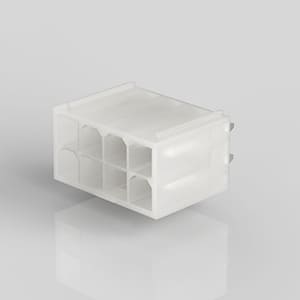

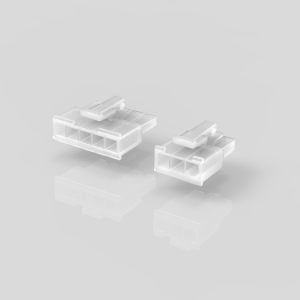

  • CR-W421S-XXS

    SPECIFICATIONS

    • Housing: Nylon-66,UL94V-2
    • Contact: Brass/Tin-plated
    • Insulation resistance: 1000MΩMin
    • Withstand voltage: 1500V AC/minute
    • Current rating: 9A AC/DC
    • Voltage rating: 600V AC/DC

    Inquiry Info. PDF

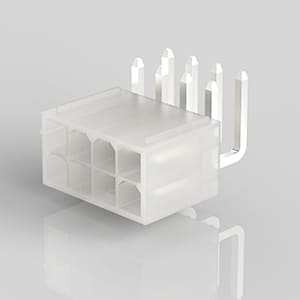

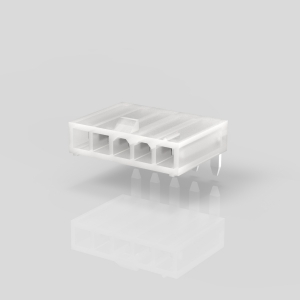

  • CR-W421-XX

    SPECIFICATIONS

    • Housing: Nylon-66,UL94V-2
    • Contact: Brass, 1.14mm Square Pin/Tin-Plated
    • Voltage rating: 600V AC/DC
    • Current rating: 9A AC/DC
    • Withstand voltage: 1500V AC/minute
    • Insulation resistance: 1000MΩMin
    • Temperature Range: -40°C~+105°C
    • Contact Resistance: Initial value/10mΩmax.
    • After environmental testing/20mΩ max.

    Inquiry Info. PDF

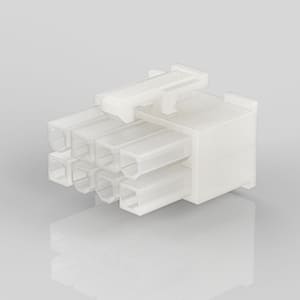

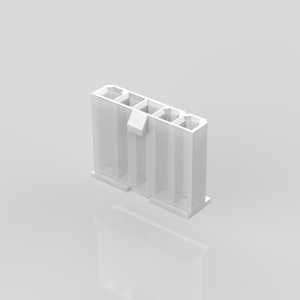

  • CR-H423M-2xXX

    SPECIFICATIONS

    • Material: Nylon-66,UL94V-2
    • Voltage rating: 600V AC/DC
    • Current rating: 9A AC/DC
    • Withstand voltage: 1500V AC/minute
    • Insulation resistance: 1000MΩMin
    • Temperature Range:-40°C~+105°C
    • Contact Resistance: Initial value/10mΩ max
    • After environmental testing/20mΩ max

    Inquiry Info. PDF

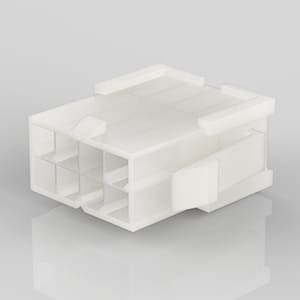

  • CR-H423F-2xXX(Y)

    SPECIFICATIONS

    • Material: Nylon-66,UL94V-2
    • Voltage rating: 600V AC/DC
    • Current rating: 9A
    • Withstand voltage: 1500V AC/minute
    • Insulation resistance: 1000MΩMin
    • Temperature Range:-40°C~+105°C
    • Contact Resistance: Initial value/10mΩ max
    • After environmental testing/20mΩ max

    Inquiry Info. PDF

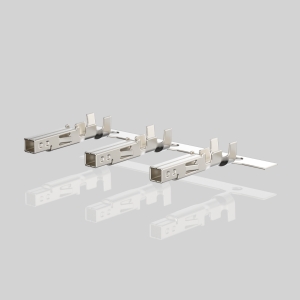

  • CR-T423F1

    SPECIFICATIONS & Ordering Information

    • Part No: CR-T423F1
    • Thickness: 0.2
    • Material:Brass
    • Wire Range: AWG#18~24
    • Insulation O.D.: 2.1-1.4mm
    • Finish: Pre.Tin-Plated
    • Qty/reel: 6,000PCS

    Inquiry Info. PDF

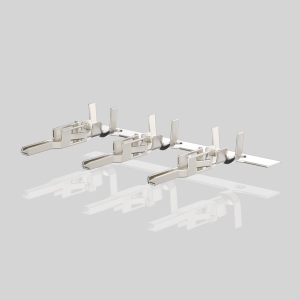

  • CR-T423M

    SPECIFICATIONS & Ordering Information

    • Part No: CR-T423M
    • Thickness: 0.2
    • Material:Brass
    • Wire Range: AWG#18~24
    • Insulation O.D.: 2.8-2.4mm
    • Finish: Pre.Tin-Plated
    • Qty/reel: 5,000PCS

    Inquiry Info. PDF

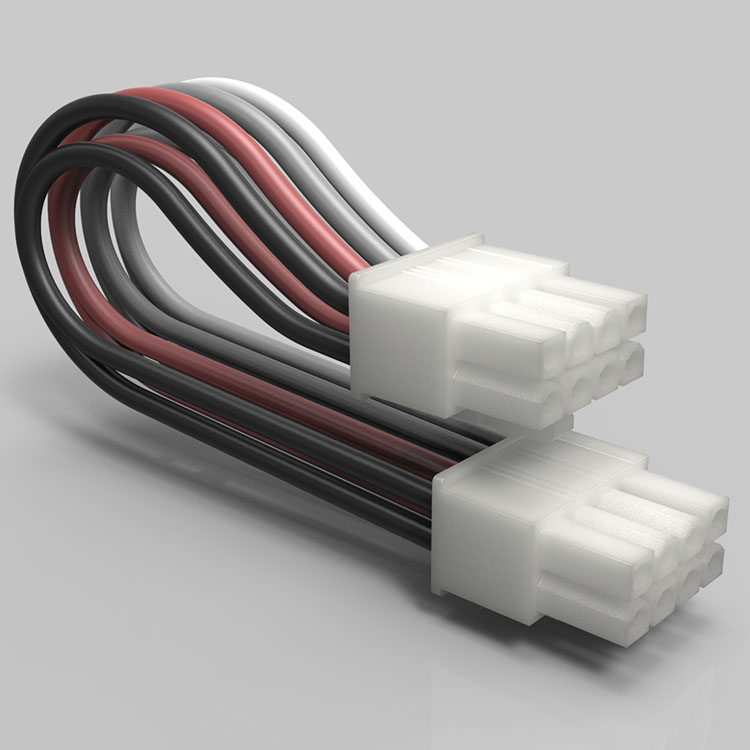

  • Mating Wiring Harness

    Inquiry Info.

Total of 7 results
