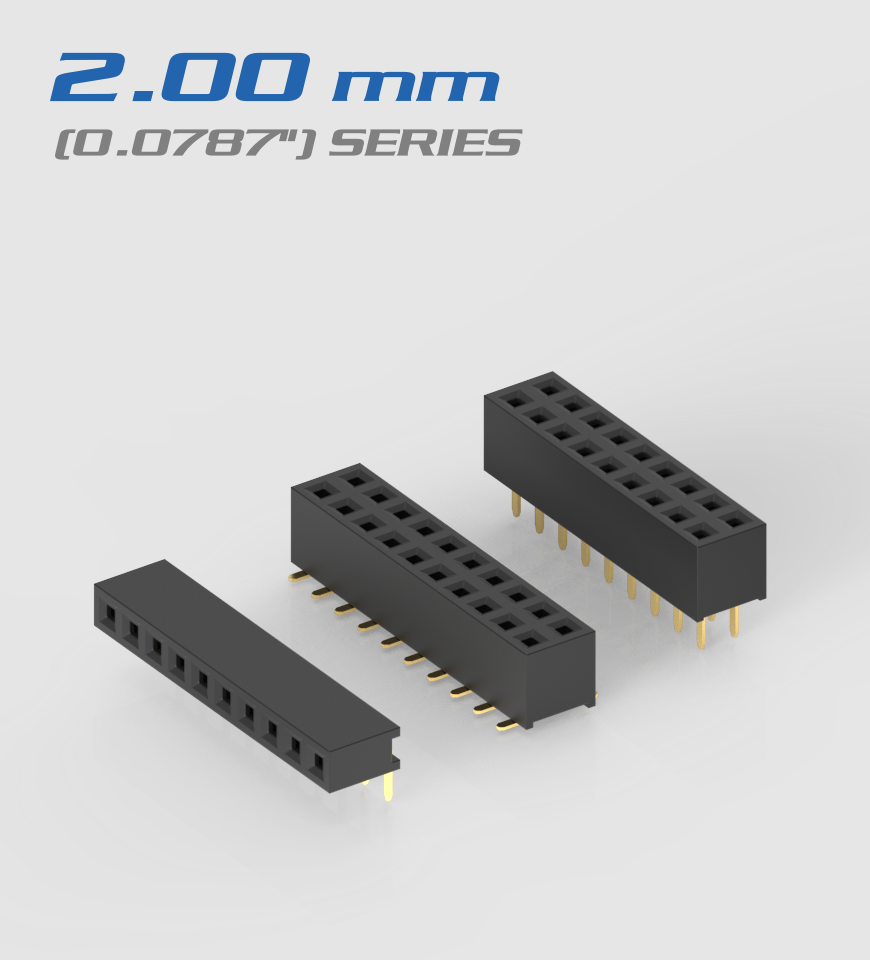

• 2.00mm(0.0787")Series

    2.00mm(0.0787")Series

    SPECIFICATIONS

    • Current Rating: 2.0 Amp
    • Insulator Resistance: 3000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: PBT、Nylon-6TT
    • Finish: Gold Plated
    • Standard: Gold Flash all over
  • 2.0 Female Header 180°單排

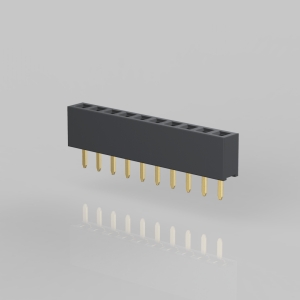

    F301-SG_-D024-XX

    SPECIFICATIONS

    • Current Rating: 2 Amp
    • Insulator Resistance: 3000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Finish: Gold Plated
    • Standard: Gold Flash all over

    Inquiry Info. PDF

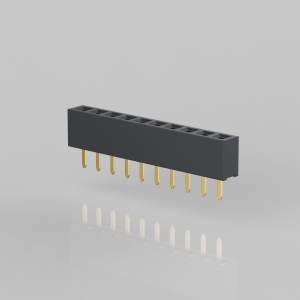

  • 2.0 Female Header 180°單排

    F302-SG_-D024-XX

    SPECIFICATIONS

    • Current rating: 2Amp
    • Insulator resistance: 3000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex Plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

  • 2.0 Female Header 180°單排

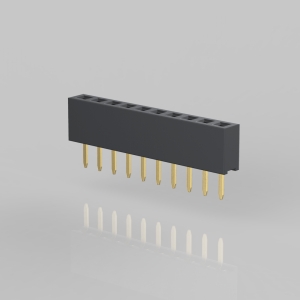

    F303-SG_-D030-XX

    SPECIFICATIONS

    • Current rating: 2Amp
    • Insulator resistance: 3000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex Plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

  • 2.0 Female Header 90°單排

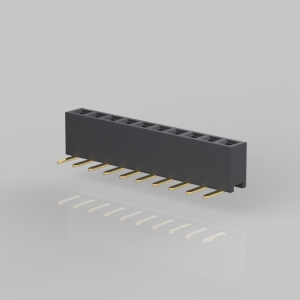

    F301-RG_-D024-XX

    SPECIFICATIONS

    • Current Rating: 2 Amp
    • Insulator Resistance: 3000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester,UL 94V-0
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over


    Note:

    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

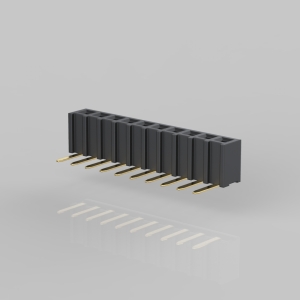

  • 2.0 Female Header 90°單排

    F311-RG_-D031-XX

    SPECIFICATIONS

    • Current rating: 2Amp
    • Insulator resistance: 3000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex Plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

  • 2.0 Female Header SMT單排

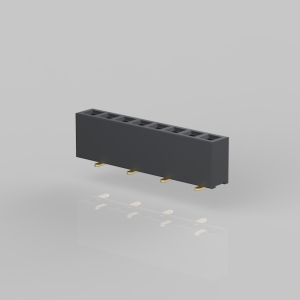

    F301-MGN-D040-XX-XT

    SPECIFICATIONS

    • Current Rating: Amp
    • Insulator Resistance: 3000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over


    Note:

    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

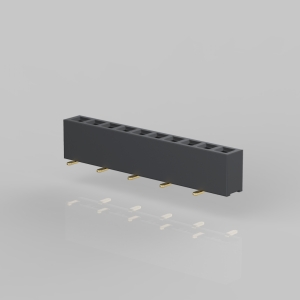

  • 2.0 Female Header SMT單排

    F302-MGN-D040-XX-XT

    SPECIFICATIONS

    • Current rating: 2Amp
    • Insulator resistance: 3000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex Plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

  • 2.0 Female Header 180°雙排

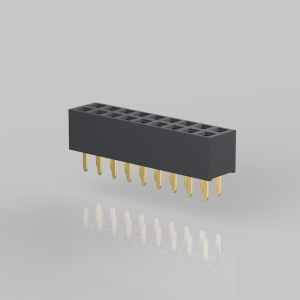

    F401-SG_-D024-XX

    SPECIFICATIONS

    • Current Rating: 2 Amp
    • Insulator Resistance: 3000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester,UL 94V-0
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over


    Note:

    • Duplex plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

  • 2.0 Female Header 180°雙排

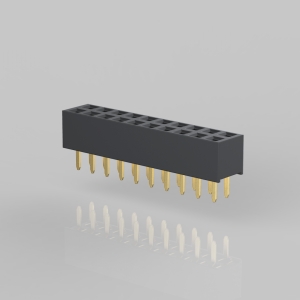

    F402-SG_-D024-XX

    SPECIFICATIONS

    • Current rating: 2Amp
    • Insulator resistance: 3000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex Plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

  • 2.0 Female Header 180°雙排

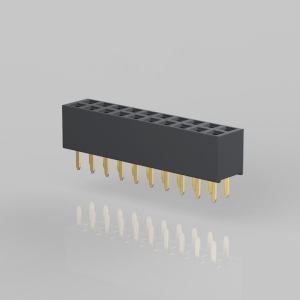

    F403-SG_-D024-XX

    SPECIFICATIONS

    • Current rating: 2Amp
    • Insulator resistance: 3000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Phosphor Bronze.
    • Insulator Material: Polyester, UL 94V-0
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over
    • Duplex Plating: Gold Plated on contact area, Tin on solder area

    Inquiry Info. PDF

Total of 20 results
