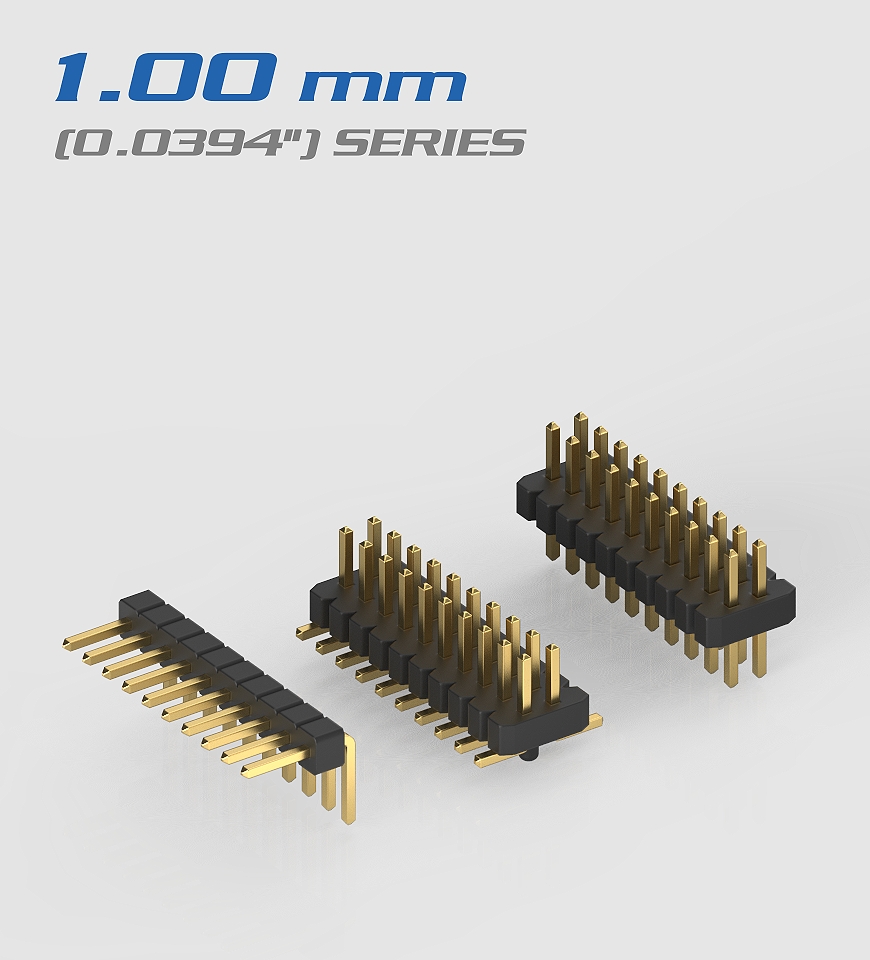

• 1.00mm(0.0394")Series

    1.00mm(0.0394")Series

    SPECIFICATIONS

    • Current Rating: 0.8 Amp
    • Insulator Resistance: 900 Megohms Min.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Copper Alloy
    • Insulator Material: High Temperature, Thermoplastic. UL 94V-0
    • Standard: Nylon-6T
    • Finish: Gold Plated
    • Standard: Gold Flash all over

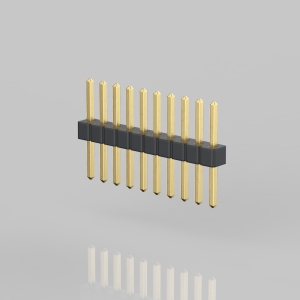

  • P702-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Contact Material : Phosphor Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    Inquiry Info. PDF

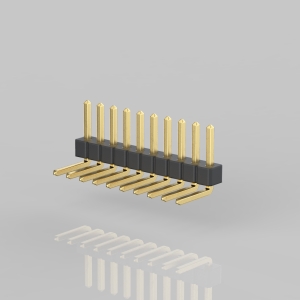

  • P702-R9GN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Contact Material : Phosphor Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated

    Inquiry Info. PDF

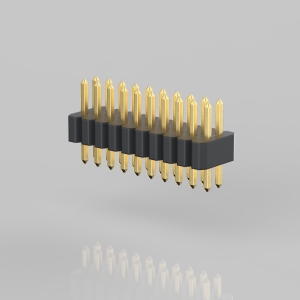

  • P801-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Contact Material : Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    Inquiry Info. PDF

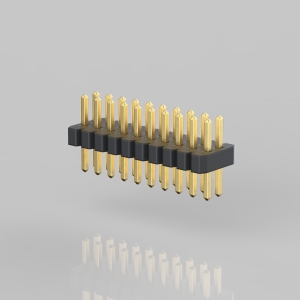

  • P802-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current rating: 0.7A AC,DC
    • Voltage rating: 30V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 200V AC/minute

    Inquiry Info. PDF

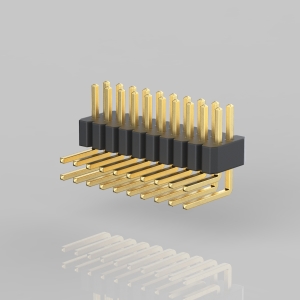

  • P801-R9GN-XXX_XXX-XX

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Contact Material : Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    Inquiry Info. PDF

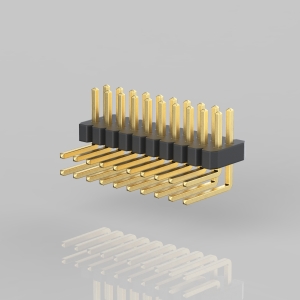

  • P802-R9GN-XXX_XXX-XX

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Contact Material : Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    Inquiry Info. PDF

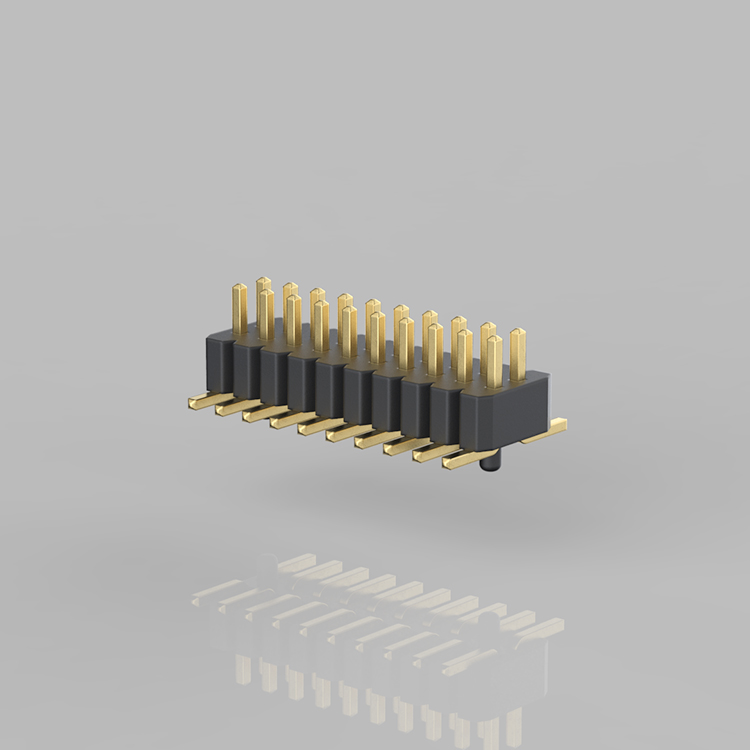

  • P801-M1GN-XXX-XX-P

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Max Processing Temp : 260℃ for 3～5 seconds
    • Contact Material : Copper Alloy
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over


    Inquiry Info. PDF

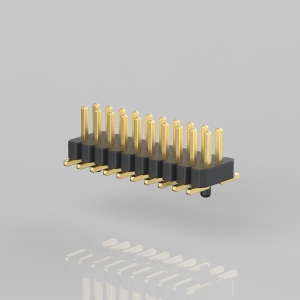

  • P804-M1GN-XXX-XX-P

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Max Processing Temp : 260℃ for 3～5 seconds
    • Contact Material : Phosphor Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    Inquiry Info. PDF

Total of 8 results
