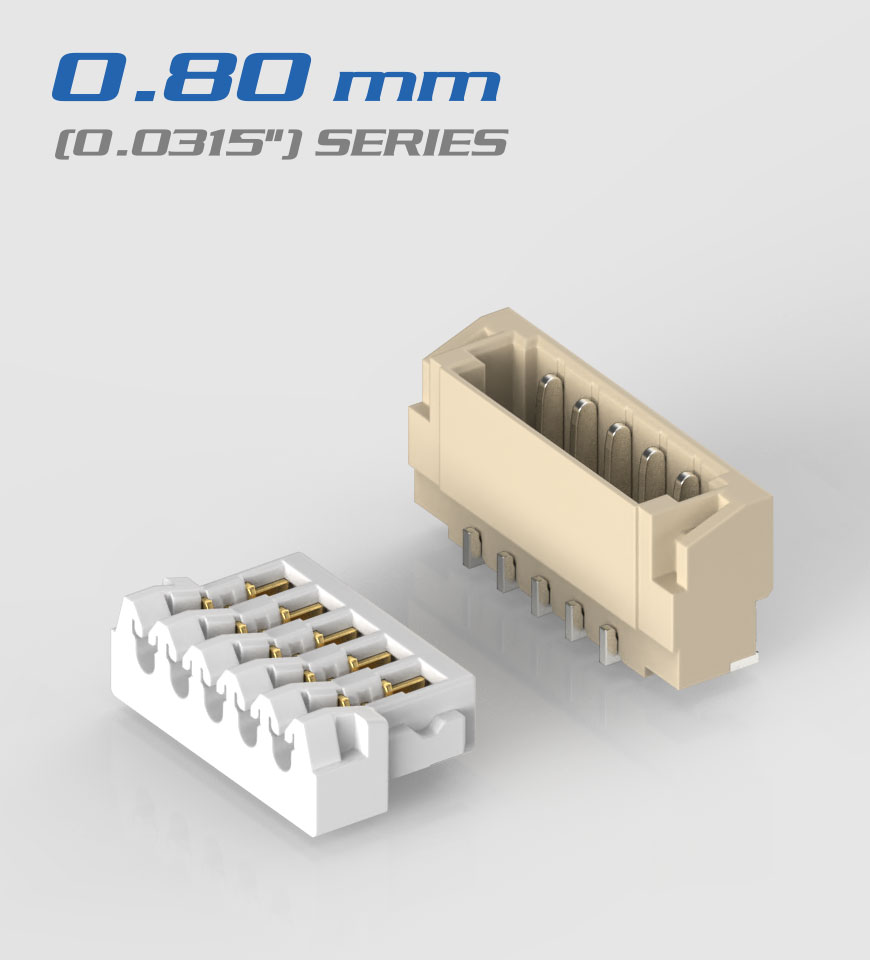

• 0.80mm(0.0315")Series

    0.80mm(0.0315")Series

    SPECIFICATIONS

    • Current rating : 0.7A AC,DC
    • Voltage rating : 30V AC,DC
    • Temperature range : -25°C ～ +85℃
    • Contact resistance : 20mΩMax
    • Insulation resistance : 100MΩMin
    • Withstanding voltage : 200V AC/minute
    • Wire Range: AWG #32,#36

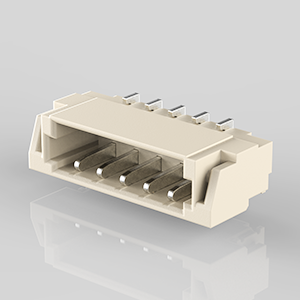

  • CC0801-W08-XX

    SPECIFICATIONS

    • Current rating: 0.7A AC,DC
    • Voltage rating: 30V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 200V AC/minute
    • Finished:Matte Tin-plated
    • Housing Material:Nylon-6T,UL94V-0

    Inquiry Info. PDF

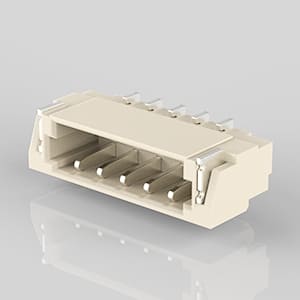

  • CC0801-W08R-XX

    SPECIFICATIONS

    • Current rating: 0.5A AC,DC
    • Voltage rating: 30V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 200V AC/minute
    • Finished:Matte Tin-plated
    • Housing Material:Nylon-6T,UL94V-0

    Inquiry Info. PDF

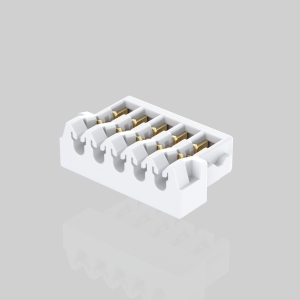

  • CC0800-H08(IDC)-XX-CF438

    Inquiry Info. PDF

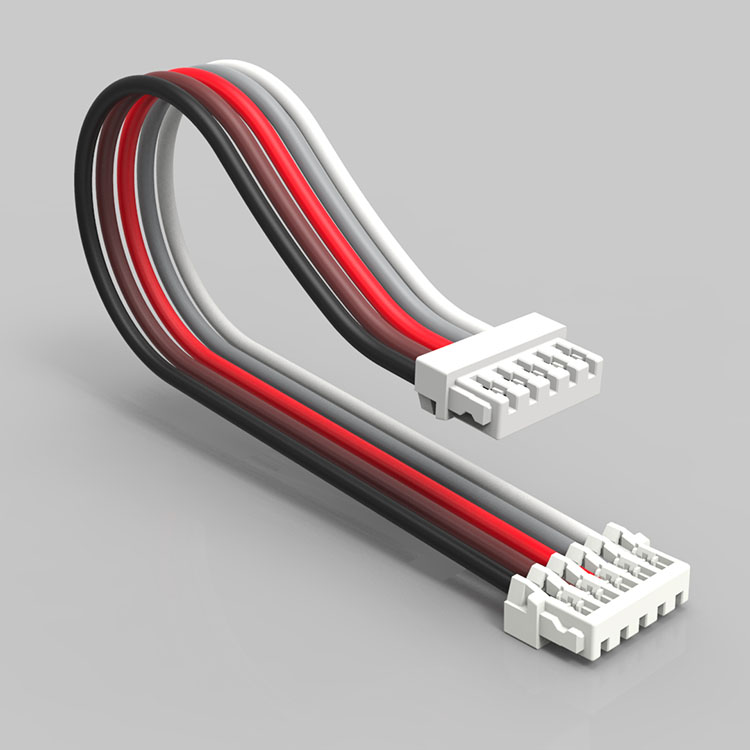

  • Mating Wiring Harness

    Inquiry Info.

Total of 4 results
