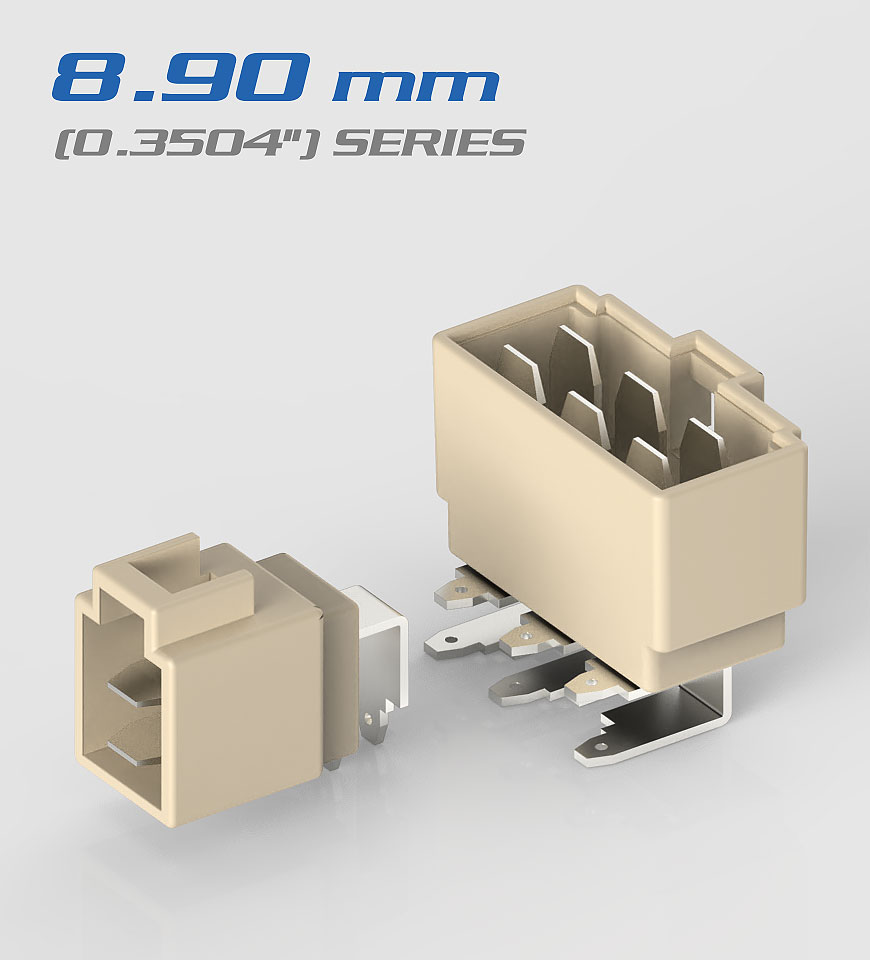

• 8.90mm(0.3504")Series

    8.90mm(0.3504")Series

    SPECIFICATIONS

    • Current rating: 25A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute

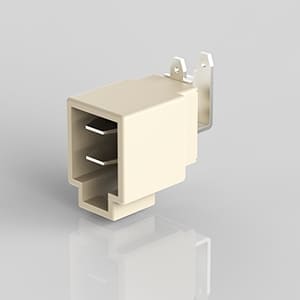

  • CW890R-02-AA

    SPECIFICATIONS

    • Current rating: 25A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Housing Material: Nylon-66,UL94V-0
    • Color: Belge
    • Contact Material : Brass
    • Finished: Tin 100u"~150u" Plated,Over Nickel 30u"~50u" Plated

    Inquiry Info. PDF

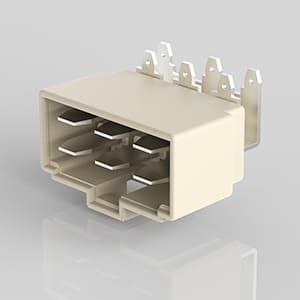

  • CW890R-06-AA

    SPECIFICATIONS

    • Current rating: 25A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Housing Material: Nylon-66,UL94V-0
    • Color: Belge
    • Contact Material : Brass
    • Finished: Tin 100u"~150u" Plated,Over Nickel 30u"~50u" Plated

    Inquiry Info. PDF

Total of 2 results
