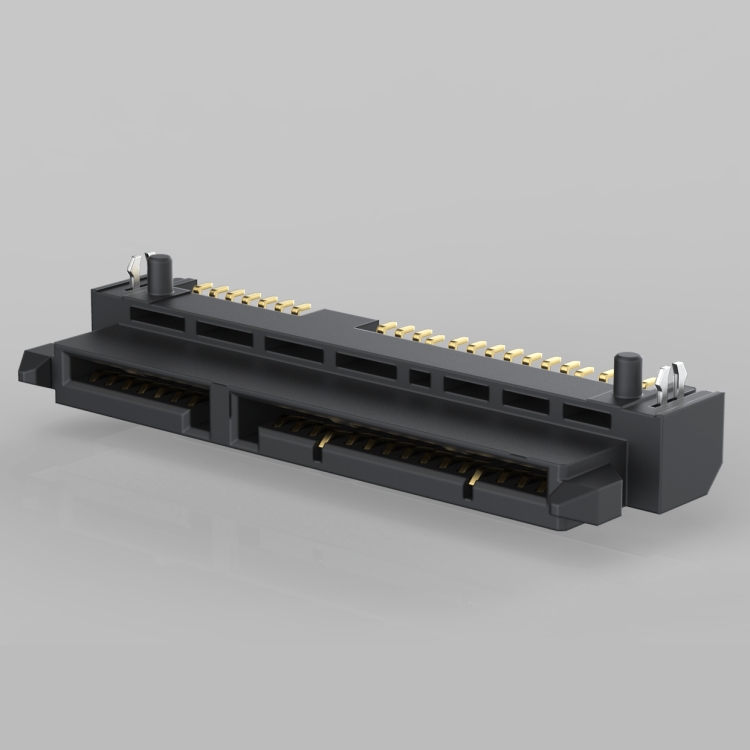

• STA-M22C-BK-H4-F 1.27mm(0.05")PITCH 7+15Pin Series
    STA-M22C-BK-H4-F 1.27mm(0.05")PITCH 7+15Pin Series

    STA-M22C-BK-H4-F 1.27mm(0.05")PITCH 7+15Pin Series

    SPECIFICATIONS
    Electrical Characteristics:

    • Reted Current : 1.0 AMP
    • Insulation Rresistance : 1000MΩMin
    • Contact resistance : 30mΩMax
    • Dielectric witstanding voltage : AC 750V for 1 MINUTE
    • Operating temperature : -40℃~+85℃


    Material Description:

    • Insulation material : Glass-filled Thermoplastic
    • Color : BLACK(UL94V-0)
    • Contact material : Brass
    • Gold on Contact area,Tin/Lead on soldering area, all over nickel

    PDF
