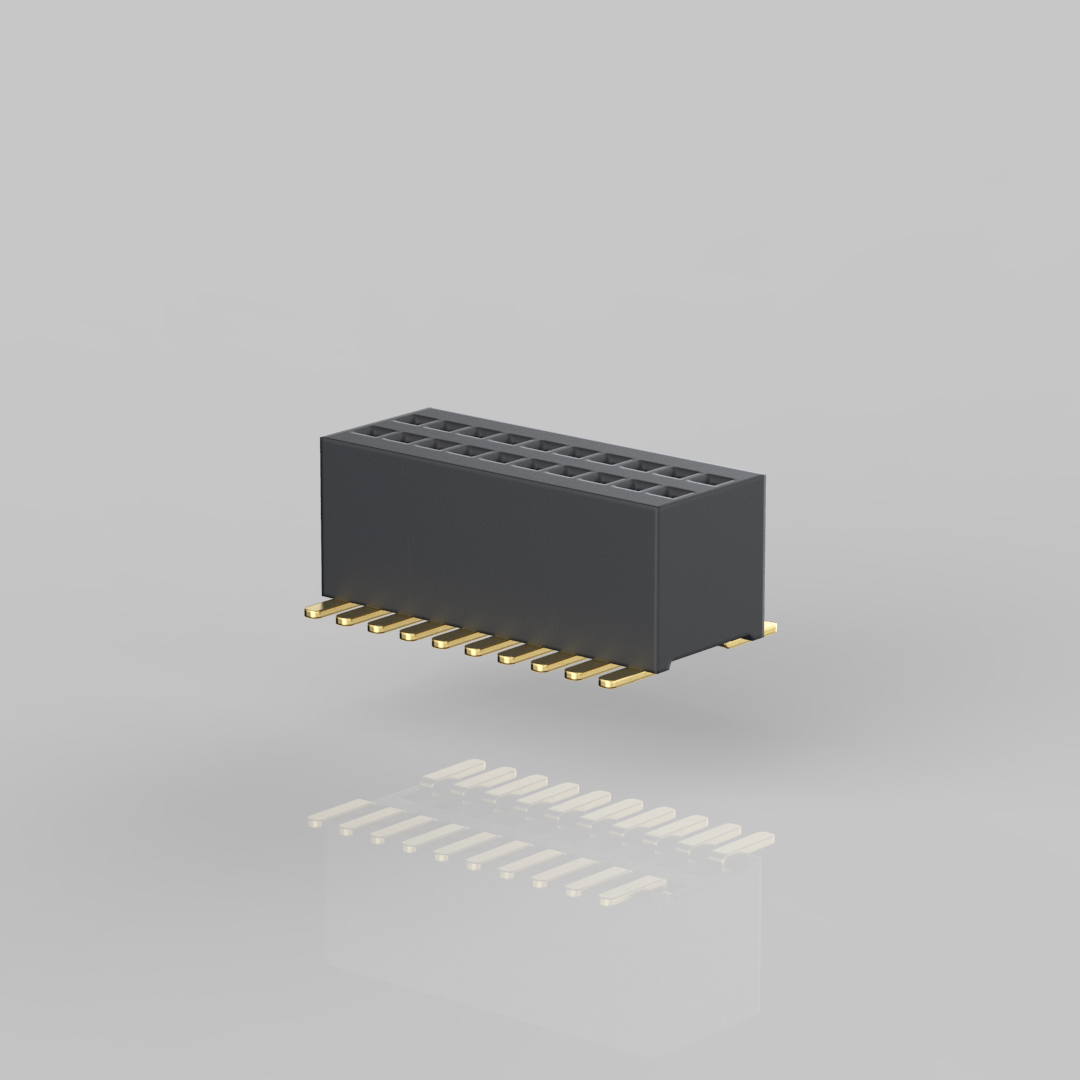

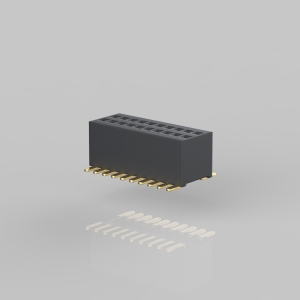

F901-MGC-D050-XX 0.8 Female Header
SPECIFICATIONS
- Current Rating: 0.8 Amp
- Insulator Resistance: 800 Megohms Min.
- contact Resistance: 20 m ohm Max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃～+105℃
- Max Processing Temp: 260℃ for 3 ～ 5 sec Max.
- Contact Material: Phosphor Bronze
- Insulator Material: High Temperature, Thermoplastic.UL 94V-0
- Standard: LCP
- Finish: Gold Plated
- Standard: Gold Flash all over
