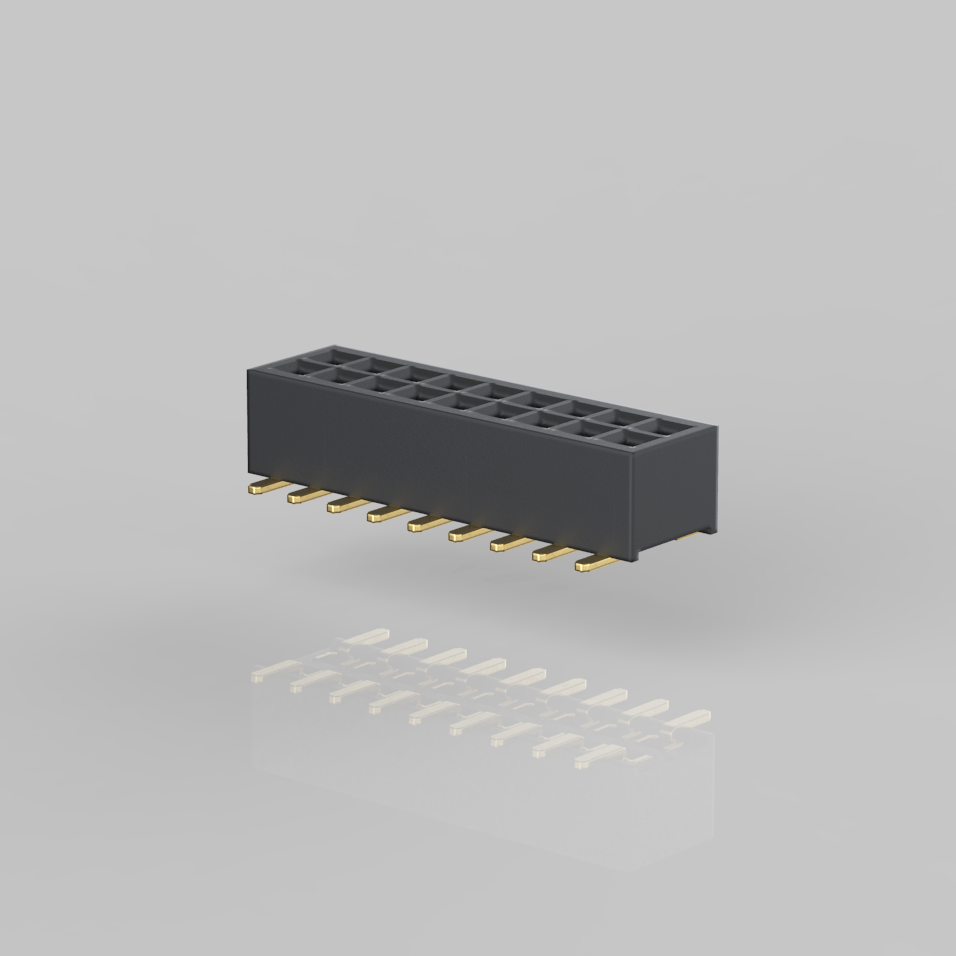

F801-MGC-D039-XX 1.0 Female Header
SPECIFICATIONS
- Current Rating: 0.8 Amp
- Insulator Resistance: 900 Megohms Min.
- contact Resistance: 20 m ohm Max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃～+105℃
- Max Processing Temp: 260℃ for 3 ～ 5 sec Max.
- Contact Material: Phosphor Bronze
- Insulator Material: High Temperature, Thermoplastic.UL 94V-0
- Standard: Nylon-6T
- Finish: Gold Plated
- Standard: Gold Flash all over nickel
