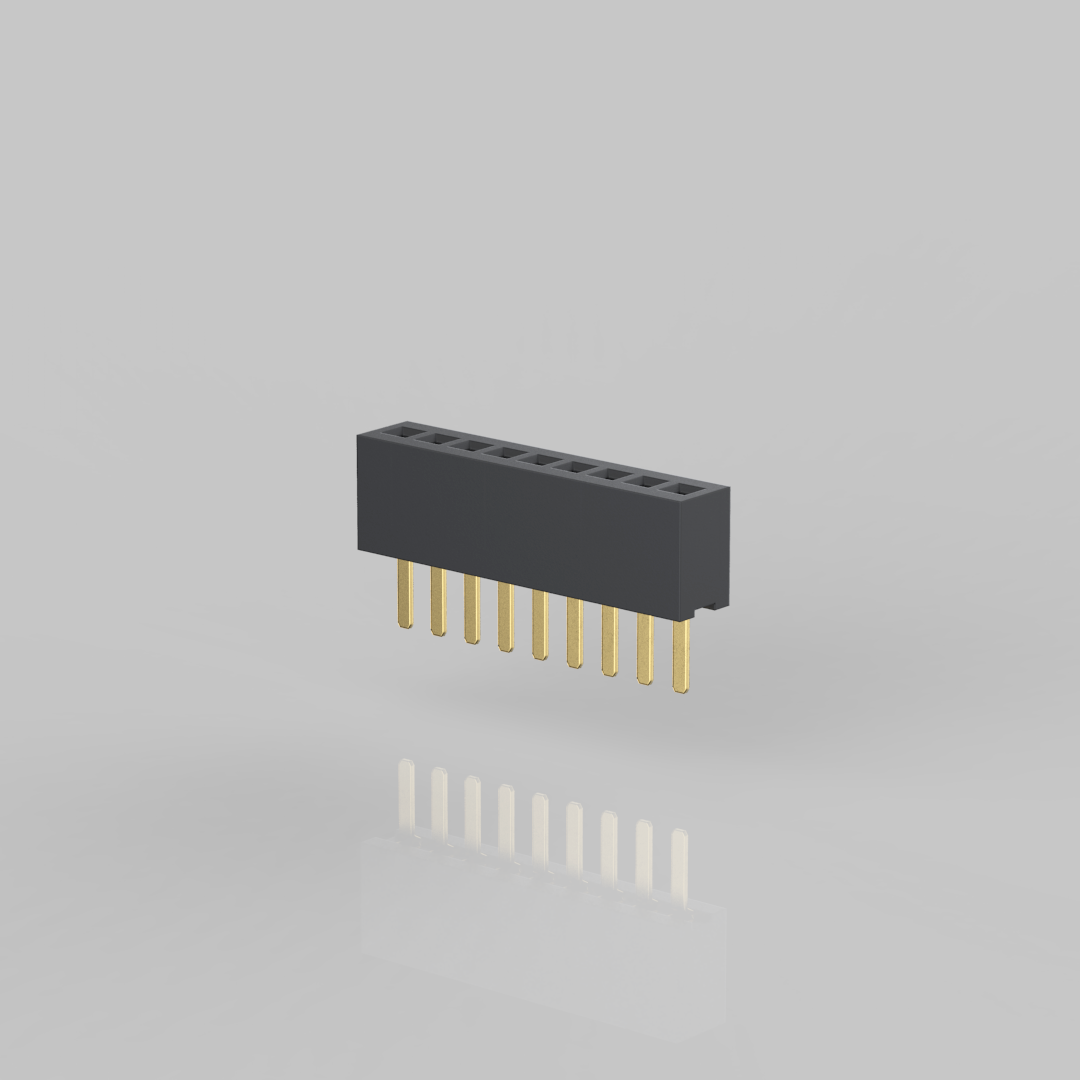

F504-SGN-D024-XX 1.27 Female Header 180°單排
SPECIFICATIONS
- Current rating: 1 Amp
- Insulator resistance: 1000 Megohms Min.
- Contact resistance: 20 m ohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40°C~+105°C
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester, UL 94V-0
- Standard: Nylon-6T
- Finish: Gold Plated
- Standard: Gold Flash all over
