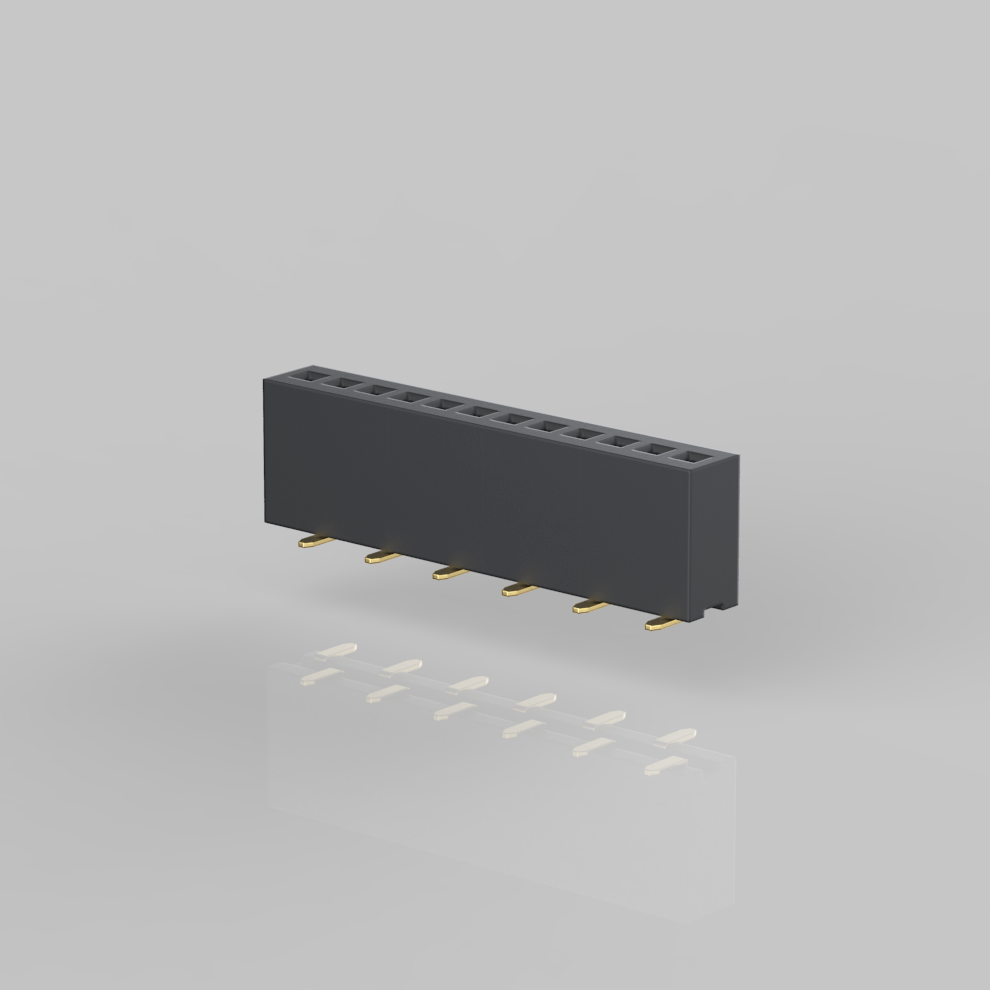

F503-MGN-D037-XX-XT 1.27 Female Header SMT單排

SPECIFICATIONS

• Current rating: 1Amp
• Insulator resistance: 1000 Megohms Min.
• Contact resistance: 20 m ohms max.
• Dielectric Withstanding: AC 500 V
• Operating Temperature: -40°C~+105°C
• Max Processing Temp: 260°C for 3~5 sec Max.
• Contact Material: Phosphor Bronze
• Insulator Material: Polyester, UL 94V-0
• Standard: Nylon-6T
• Finish: Gold Plated
• Standard: Gold Flash all over
