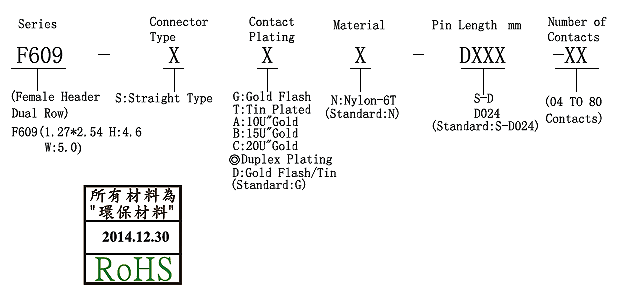

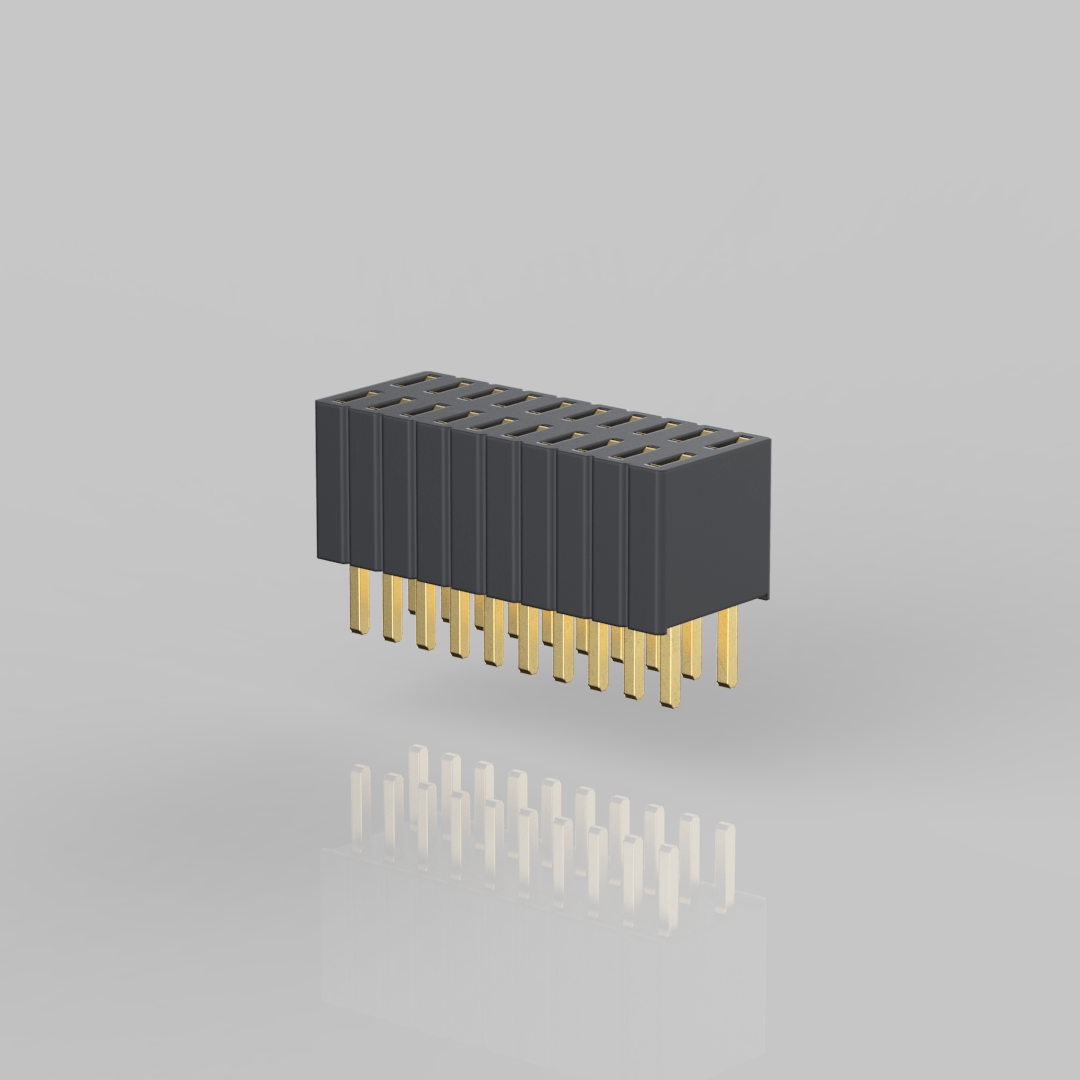

F609-SGN-D024-XX
SPECIFICATIONS
- Current Rating: 1 Amp
- Insulator Resistance: 1000 Megohms Min.
- Contact Resistance: 20 Milliohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃ ～ +105℃
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester, UL 94V-0
- Standard: Nylon-6T
- Finish: Gold Plated
- Standard: Gold Flash all Nickel
