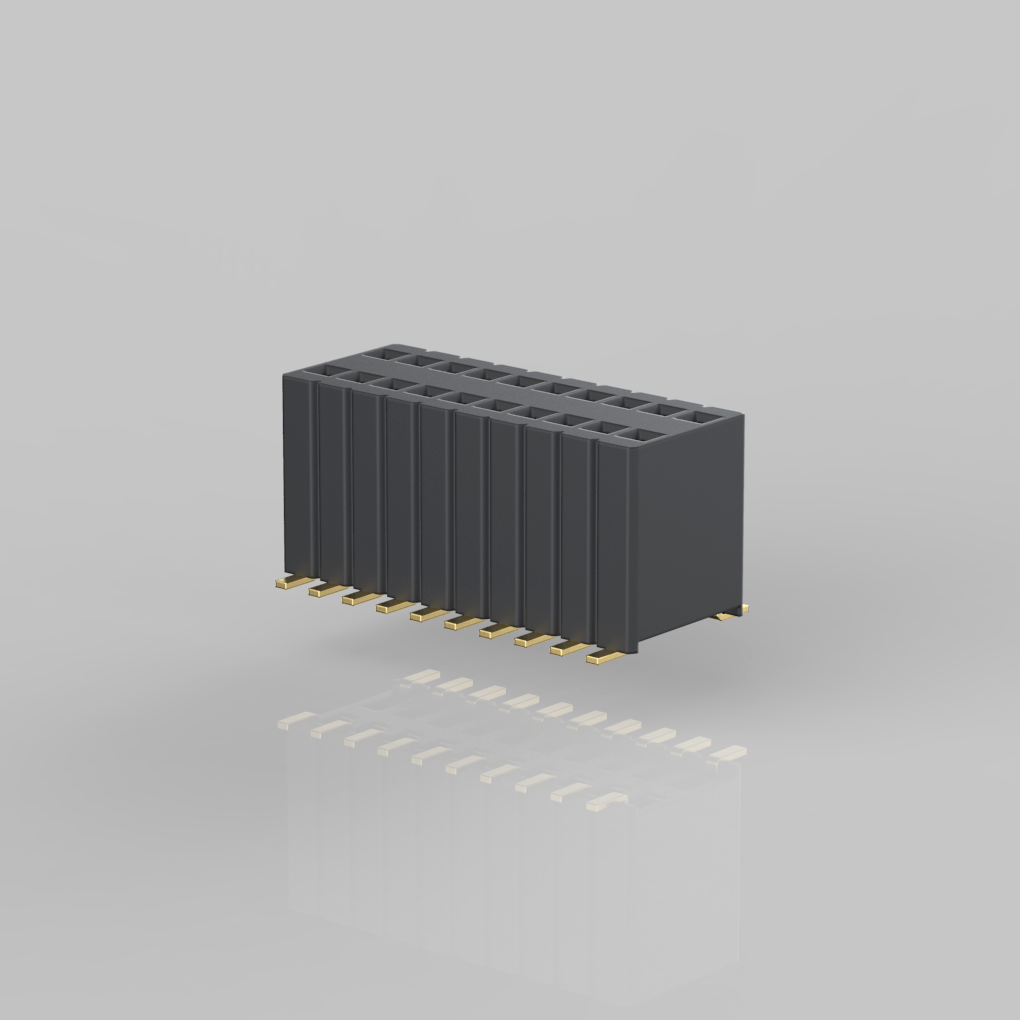

F611-MGN-D067-XX
SPECIFICATIONS
- Current Rating: 1 Amp
- Insulator Resistance: 1000 Megohms Min.
- Contact Resistance: 20 Milliohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃ ～ +105℃
- Max Processing Temp: 260℃ for 3 ~ 5 sec Max.
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester, UL 94V-0
- Standard: Nylon-6T
- Contact Plated: Full Gold, Full Tin, Selective Plated
- Standard: Gold Flash all Nickel
