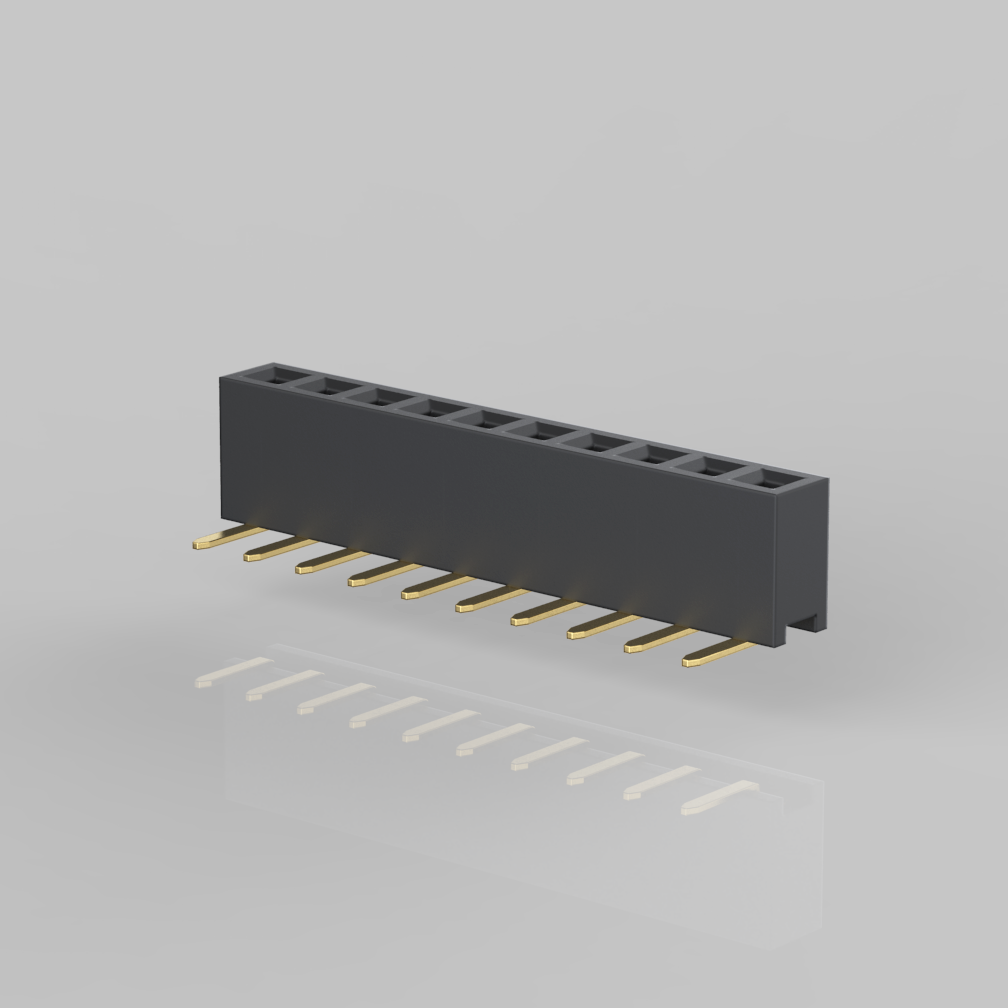

F301-RG_-D024-XX 2.0 Female Header 90°單排

SPECIFICATIONS

• Current Rating: 2 Amp
• Insulator Resistance: 3000 Megohms Min.
• Contact Resistance: 20 m ohms max.
• Dielectric Withstanding: AC 500 V
• Operating Temperature: -40℃ ～ +105℃
• Contact Material: Phosphor Bronze.
• Insulator Material: Polyester,UL 94V-0
• Finish: Tin,Gold or Duplex Plated
• Standard: Gold Flash all over


Note:

• Duplex plating: Gold Plated on contact area, Tin on solder area
