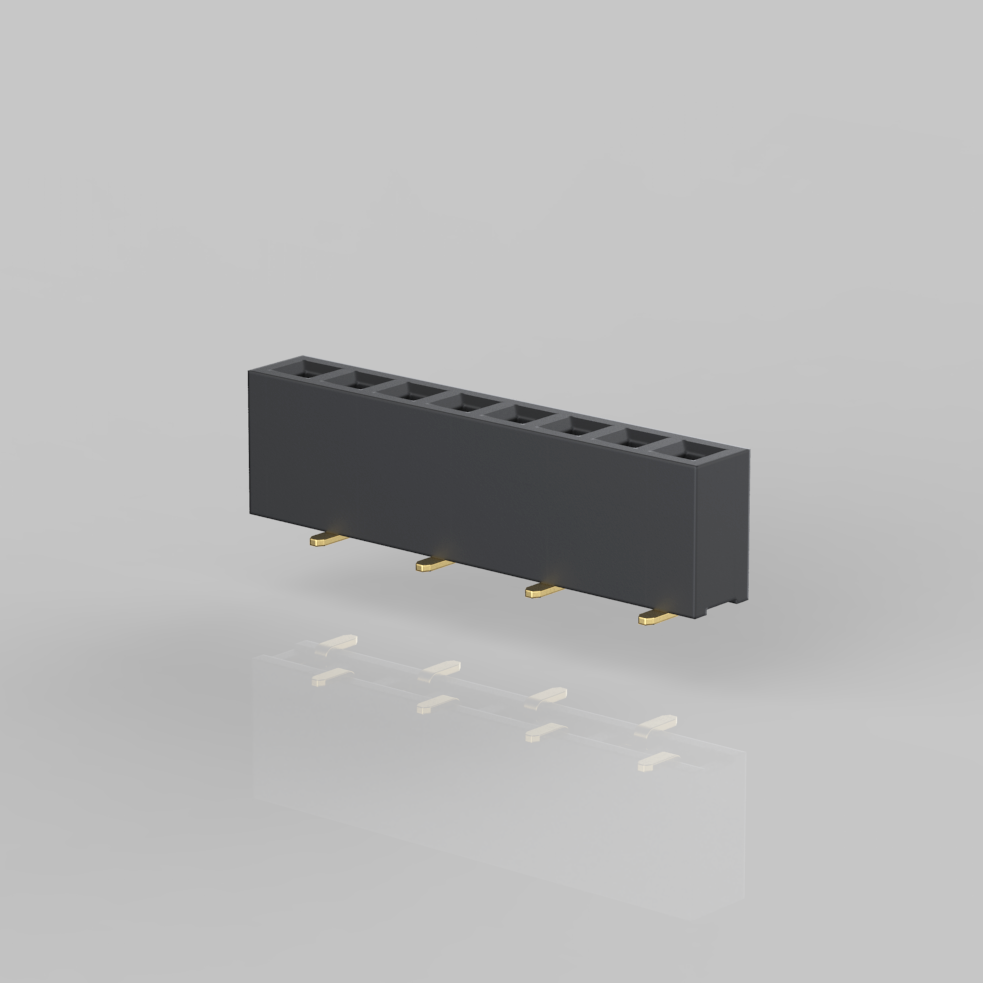

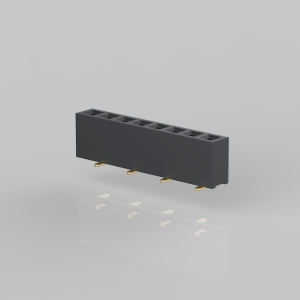

F301-MGN-D040-XX-XT 2.0 Female Header SMT單排
SPECIFICATIONS
- Current Rating: Amp
- Insulator Resistance: 3000 Megohms Min.
- Contact Resistance: 20 m ohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃ ～ +105℃
- Contact Material: Phosphor Bronze.
- Insulator Material: Polyester,UL 94V-0
- Standard: Nylon-6T
- Finish: Tin,Gold or Duplex Plated
- Standard: Gold Flash all over
Note:
- Duplex plating: Gold Plated on contact area, Tin on solder area
