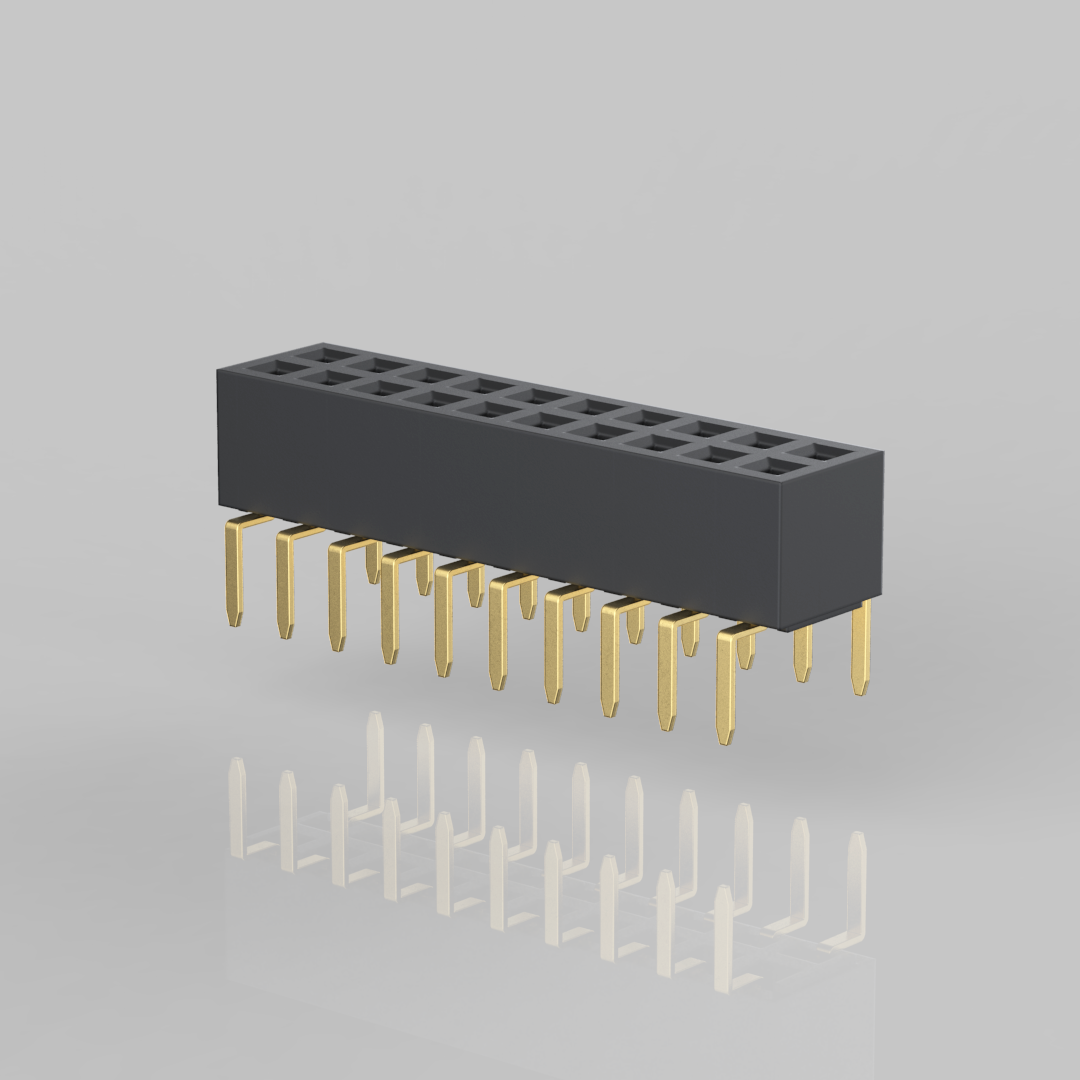

F490-L3GN-D030-XX 2.0 Female Header 蜈蚣腳
SPECIFICATIONS
- Current Rating: 2 Amp
- Insulator Resistance: 3000 Megohms Min.
- Contact Resistance: 20 m ohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40℃ ～ +105℃
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester,UL 94V-0
- Standard: Nylon-6T
- Finish: Gold Plated
- Standard: Gold Flash all over
