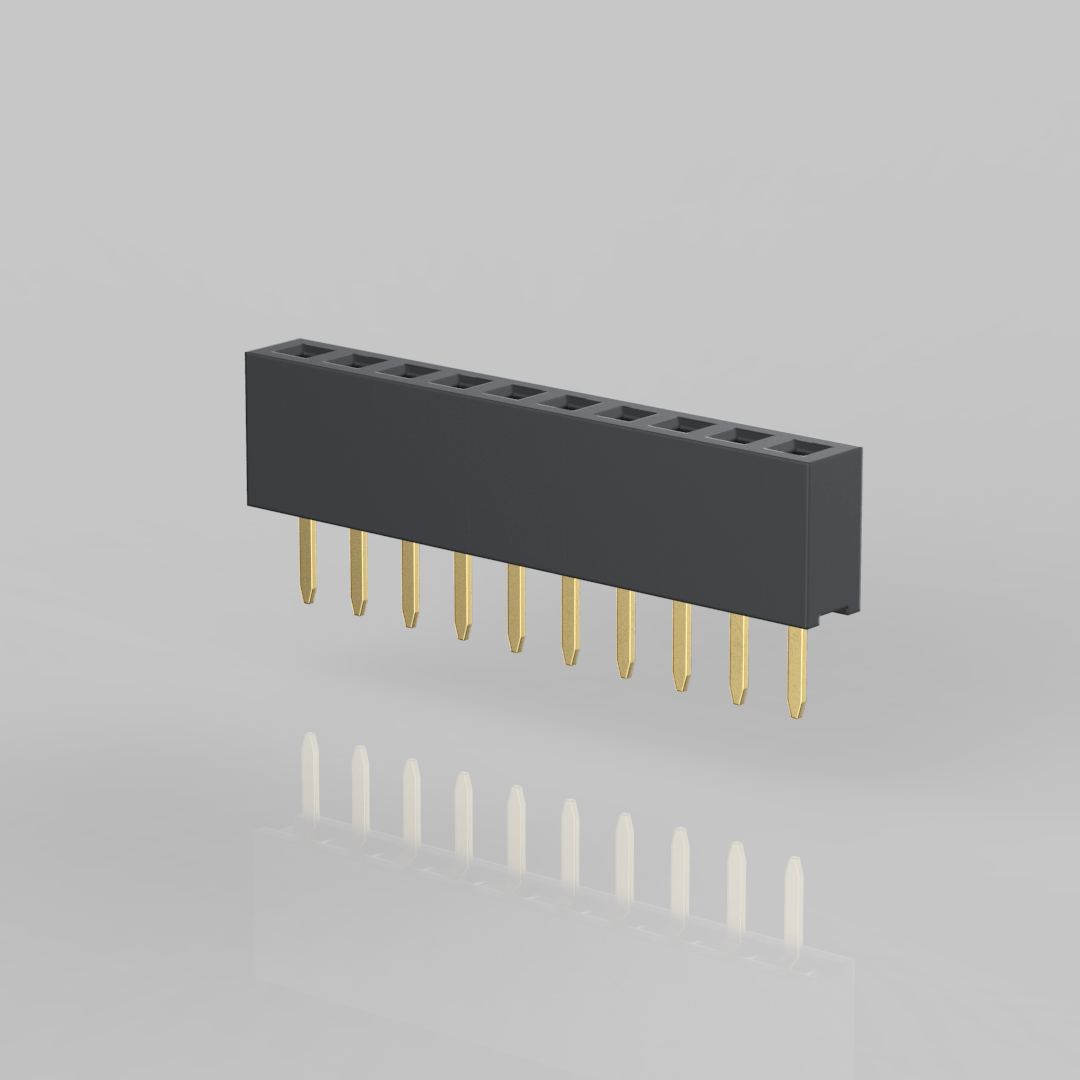

F303-SG_-D030-XX 2.0 Female Header 180°單排

SPECIFICATIONS

• Current rating: 2Amp
• Insulator resistance: 3000 Megohms Min.
• Contact resistance: 20 m ohms max.
• Dielectric Withstanding: AC 500 V
• Operating Temperature: -40°C~+105°C
• Contact Material: Phosphor Bronze.
• Insulator Material: Polyester, UL 94V-0
• Finish: Tin, Gold or Duplex Plated
• Standard: Gold Flash all over
• Duplex Plating: Gold Plated on contact area, Tin on solder area
