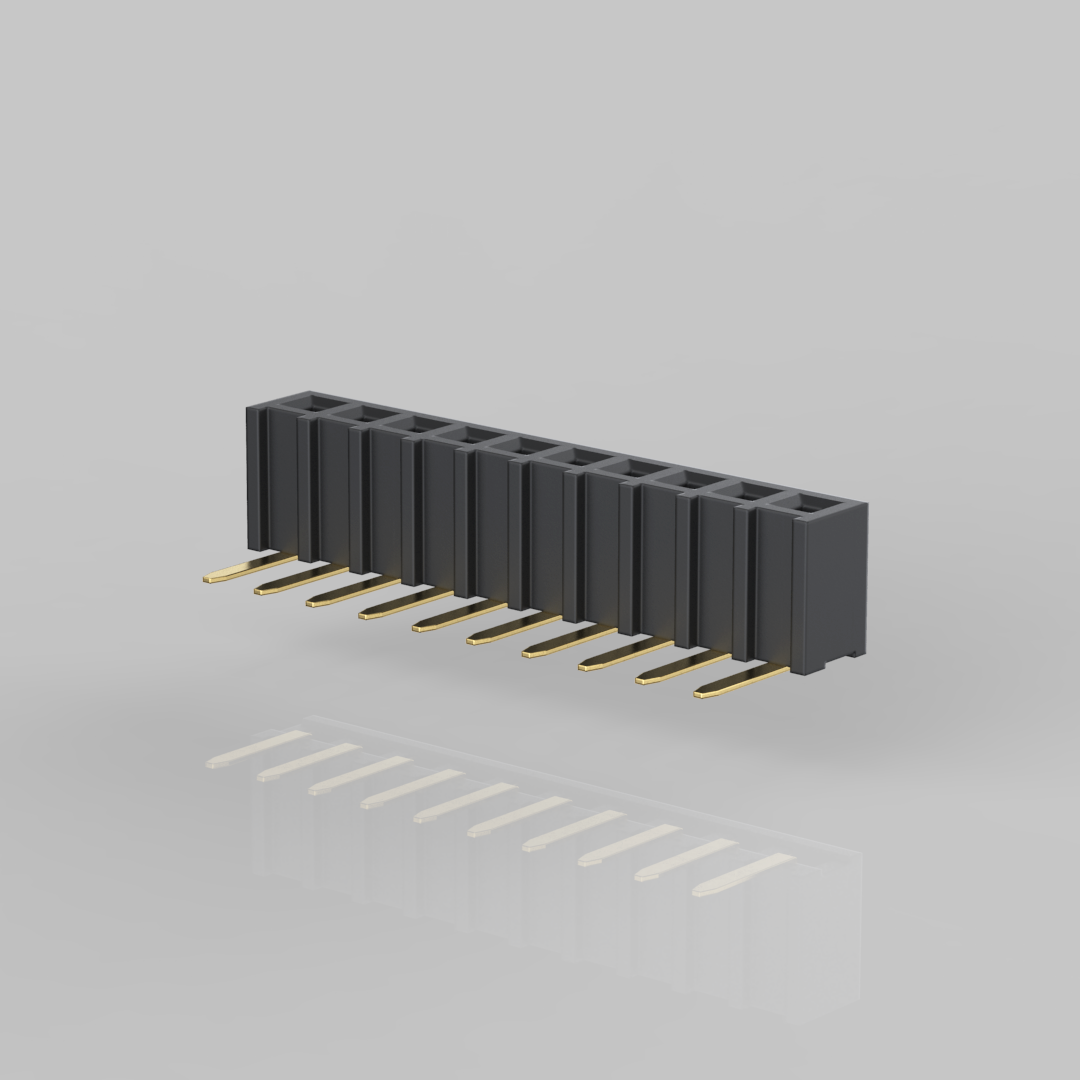

F311-RG_-D031-XX 2.0 Female Header 90°單排
SPECIFICATIONS
- Current rating: 2Amp
- Insulator resistance: 3000 Megohms Min.
- Contact resistance: 20 m ohms max.
- Dielectric Withstanding: AC 500 V
- Operating Temperature: -40°C~+105°C
- Contact Material: Phosphor Bronze.
- Insulator Material: Polyester, UL 94V-0
- Finish: Tin, Gold or Duplex Plated
- Standard: Gold Flash all over
- Duplex Plating: Gold Plated on contact area, Tin on solder area
