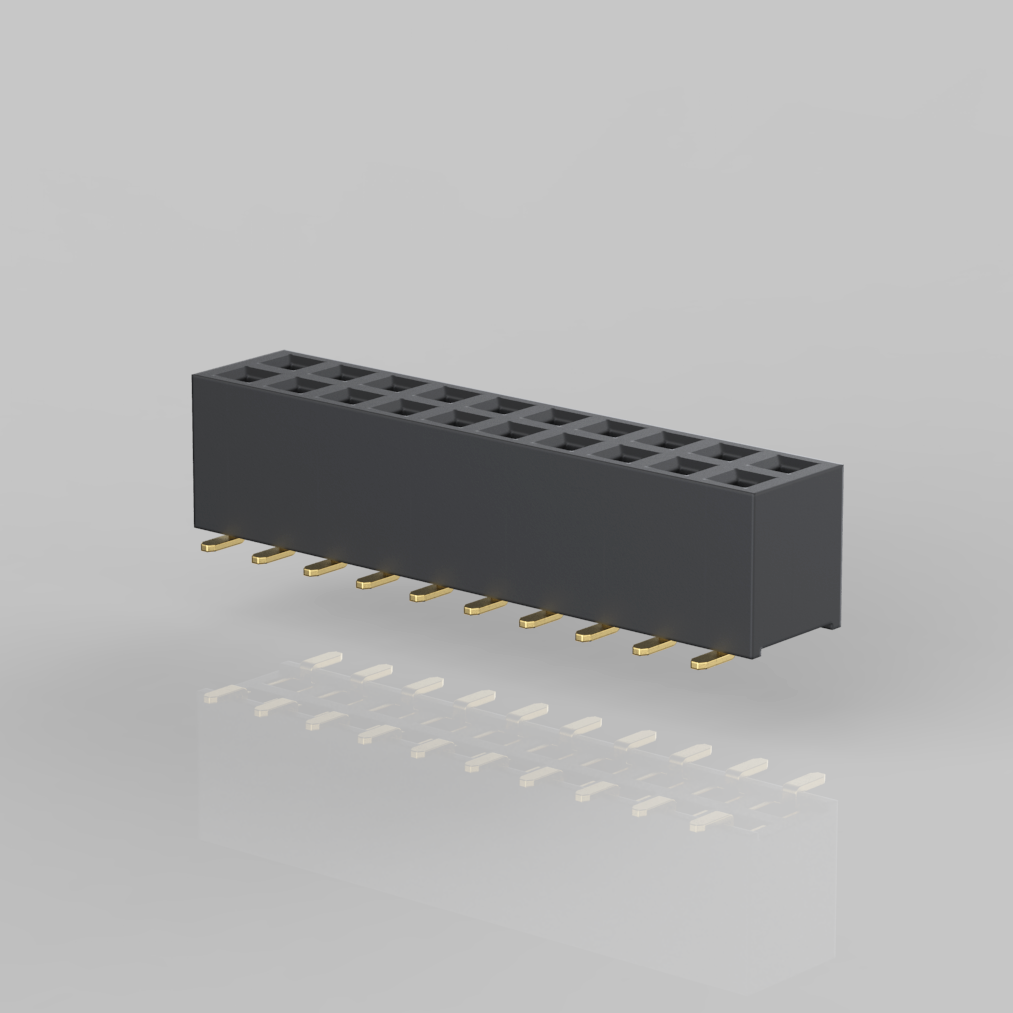

F403-MGN-D060-XX 2.0 Female Header SMT雙排

SPECIFICATIONS

• Current rating: 2Amp
• Insulator resistance: 3000 Megohms Min.
• Contact resistance: 20 m ohms max.
• Dielectric Withstanding: AC 500 V
• Operating Temperature: -40°C~+105°C
• Max Processing Temp: 260°C for 3~5 sec Max.
• Contact Material: Phosphor Bronze.
• Insulator Material: Polyester, UL 94V-0
• Standard: Nylon-6T
• Finish: Tin, Gold or Duplex Plated
• Standard: Gold Flash all over
• Duplex Plating: Gold Plated on contact area, Tin on solder area
