• P901-M6GN-XXX-XX

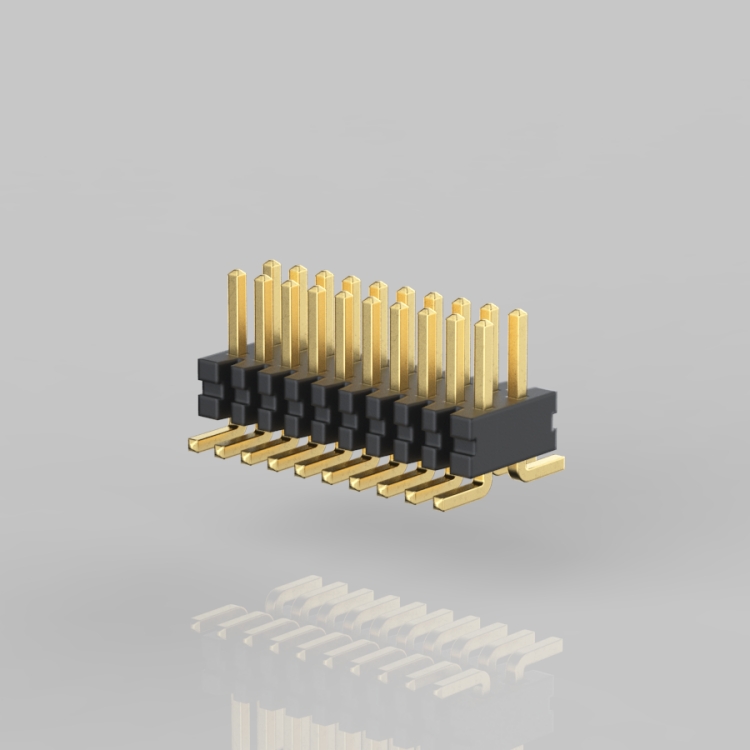

    P901-M6GN-XXX-XX

    SPECIFICATIONS

    • Current rating: 0.7A AC,DC
    • Voltage rating: 30V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 200V AC/minute

    PDF

P901-M6GN-XXX-XX

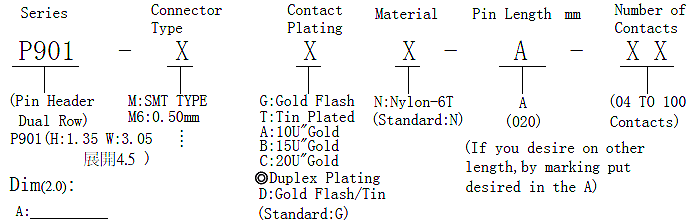

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P901
Connector Type M6:0.50mm
Contact Plating G: Gold Flash
Material N: Nylon-6T
Dim A
Number of Contacts
