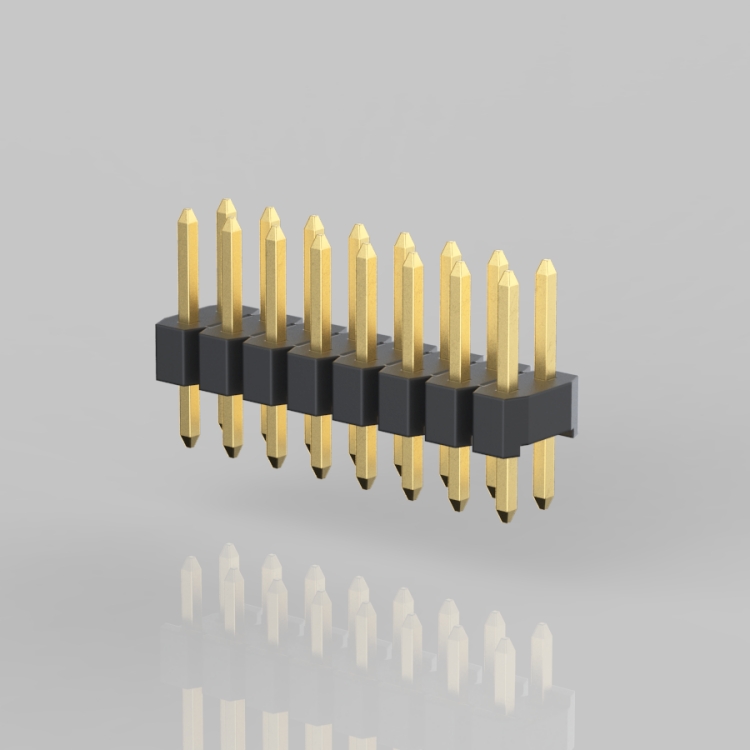

• P40X-SG_-XXX/XXX-XX

    P40X-SG_-XXX/XXX-XX

    SPECIFICATIONS

    • Current rang: 2A AC, DC
    • Insulation resistance: 3000 Megohms Min
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Copper Alloy
    • Insulator Material: Polyester,UL94V-0
    • Finished: Tin, Gold
    • Standard: Gold Flash all over

    PDF

P40X-SG_-XXX/XXX-XX

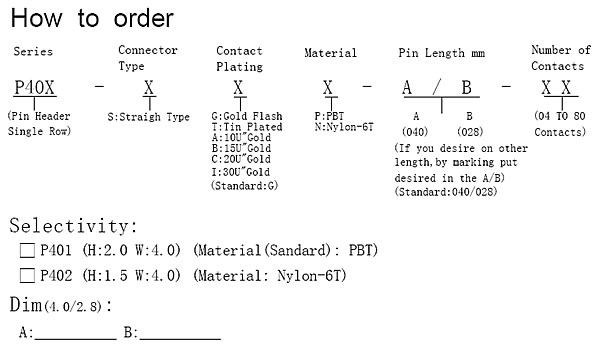

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No.
Connector Type S:Straigh Type
Contact Plating
Material
Dim A
Dim B
Number of Contacts
