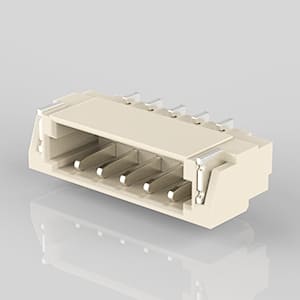

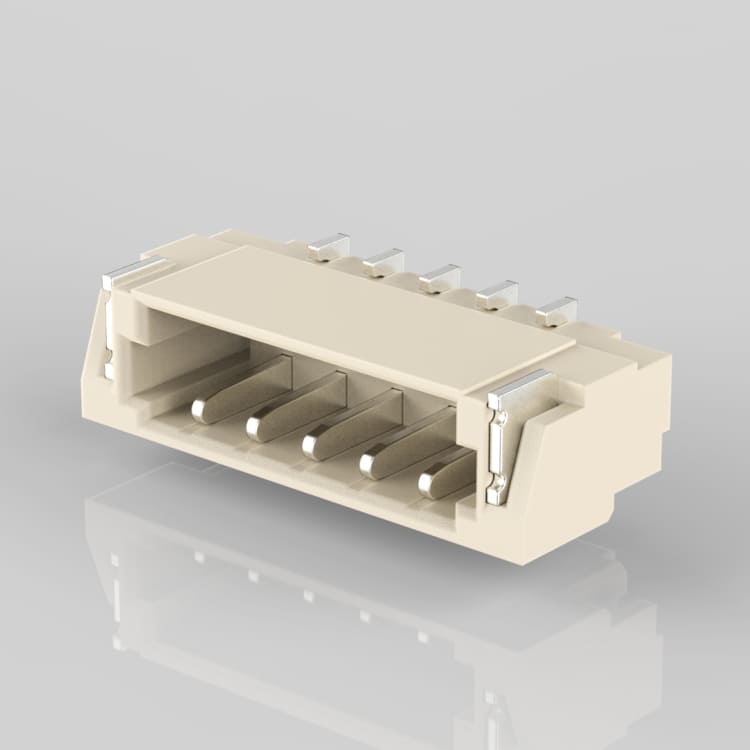

• CC0801-W08R-XX

    CC0801-W08R-XX

    SPECIFICATIONS

    • Current rating: 0.5A AC,DC
    • Voltage rating: 30V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 200V AC/minute
    • Finished:Matte Tin-plated
    • Housing Material:Nylon-6T,UL94V-0

    PDF

CC0801-W08R-XX

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

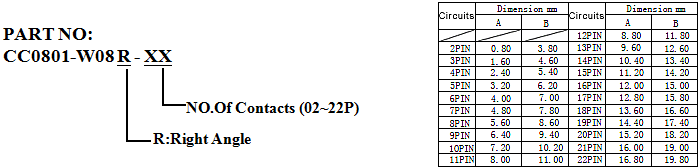

Part No. CC0801-W08
Connector Type R:Right Angle
No. of Contact
See Catalog
