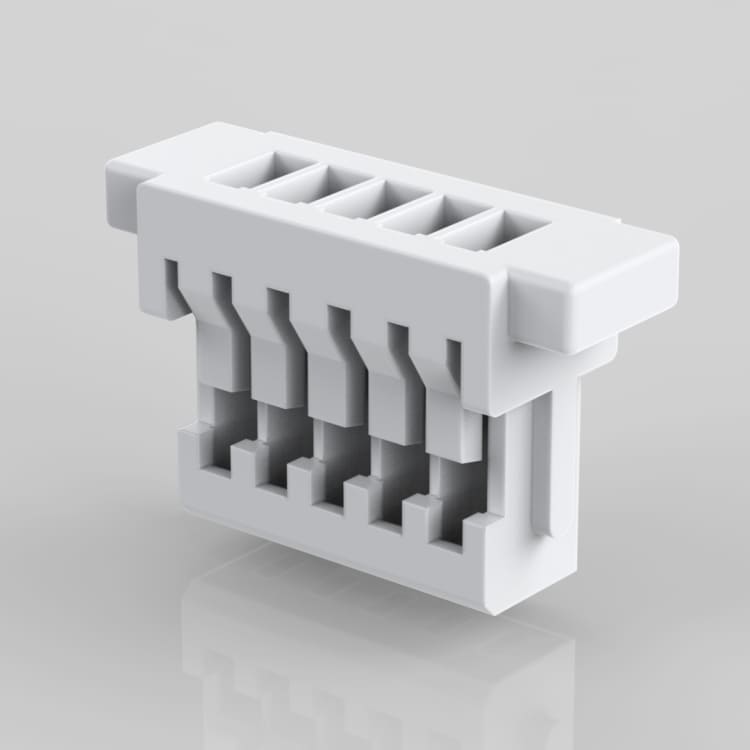

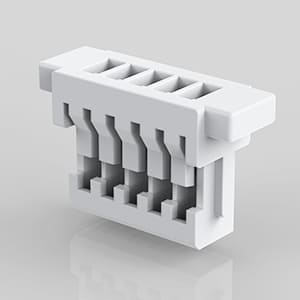

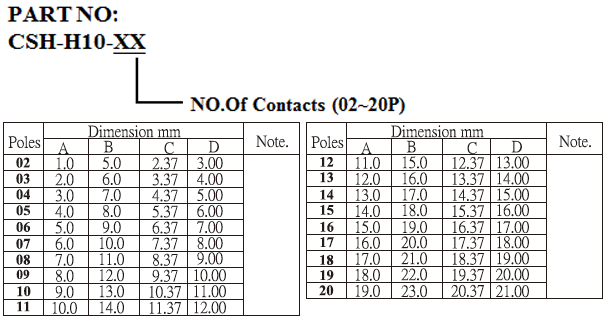

CSH-H10-XX
SPECIFICATIONS
Electrical
- Current rang: 1A AC, DC
- Voltage rating: 50V AC/ max.
- Temperature range:-25°C~+85°C
- Insulation resistance: 100MΩMin
- Dielectric Withstanding Voltage: 500V AC/ min.
- Contact Resistance: 20mΩ/ max.
Material
- Material: PBT, UL94V-0
