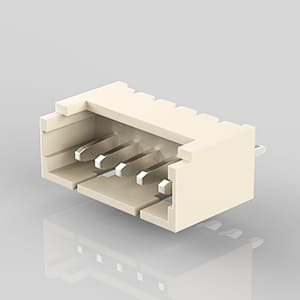

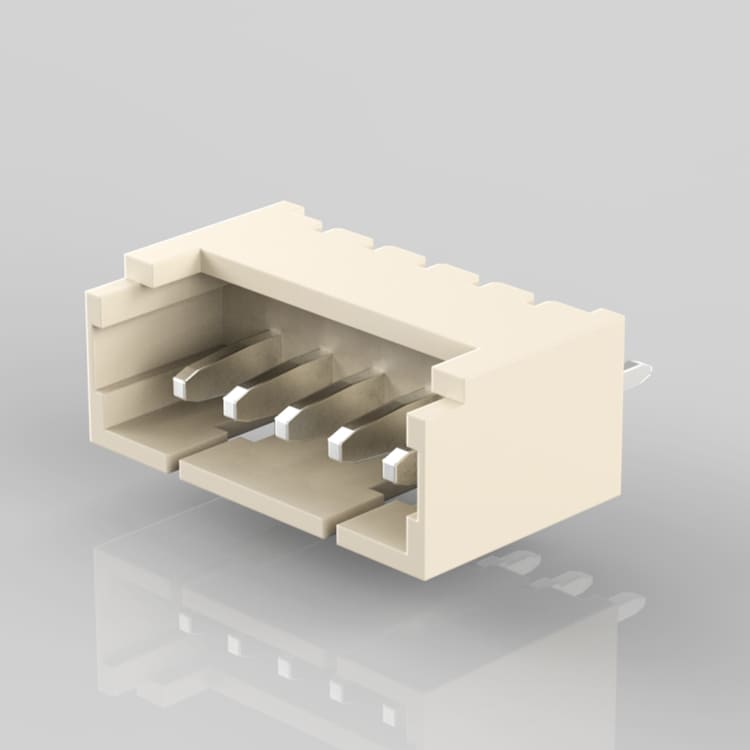

CCX-W125-XX-DIP
SPECIFICATIONS
- Current rang: 1A AC, DC
- Voltage rating: 125V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 20mΩMax
- Insulation resistance: 100MΩMin
- Withstanding voltage: 500V AC/minute
- Pin Material: Copper Alloy
- Finished: Tin-plated
- Housing Material: Nylon-6T,UL94V-0
- Color: Beige
