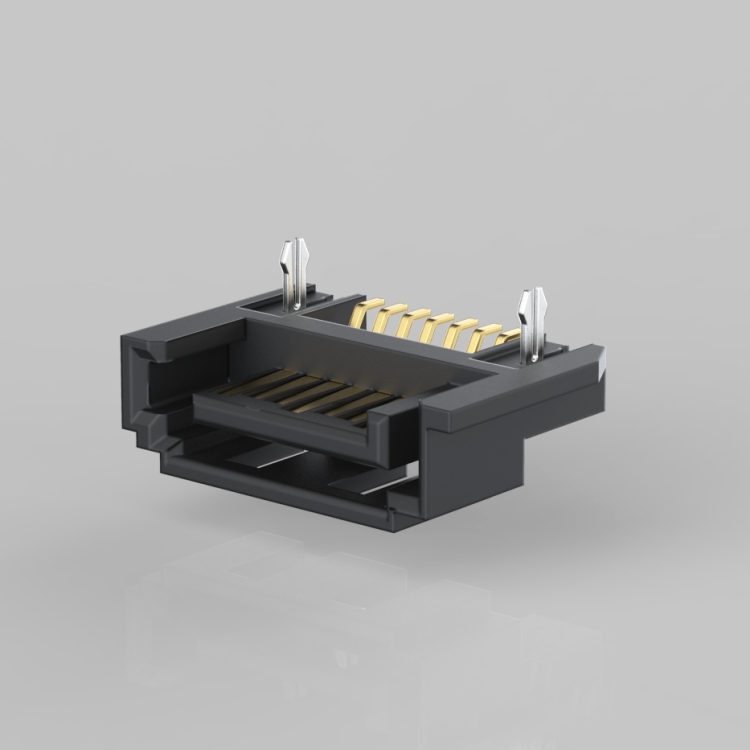

STA-M07X-XX-HX-M E-SATA 7P MALE
SPECIFICATIONS
- Electrical : 1.0 Amp
- Reted Current : 1000MΩMin
- Contact resistance : 30mΩMax
- Dielectric witstanding voltage : AC 750V for 1 minute
- Operating temperature : -40°C ～ +85℃
- Insulator material : Glass-filled Thermoplastic
- Color : Black(UL94V-0)
- Contact material : Brass Gold on Contact area, Tin/Lead on soldering area, all over nickel
