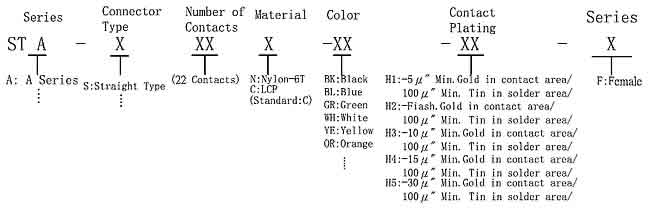

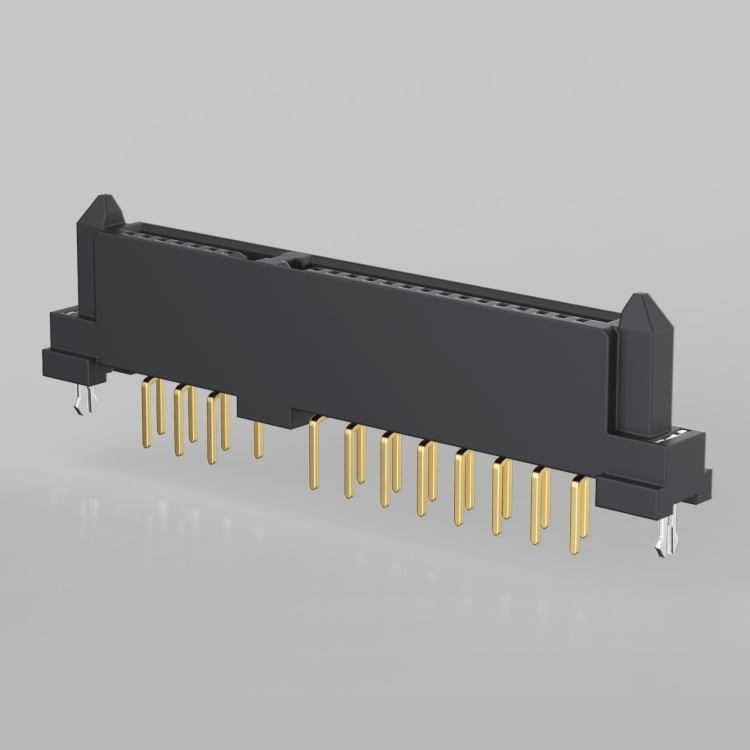

STA-S22C-BK-H4-F 1.27mm(0.05")PITCH 7+15Pin Series

SPECIFICATIONS
Electrical Characteristics:

• RATED CURRENT: 1.0 Amp
• INSULATION RECICTANCE: 1000 MΩMin.
• CONTACT RESISTANCE: 30 mΩMax.
• DIELECTRIC WITSTANDING VOLTAGE: AC 750V FOR 1MINUTE
• OPERATING TEMPERATURE: -40°C~+85°C


Material Description:

• INSULATOR MATERIAL: GLASS-FILLED, THERMOPLASTIC
• COLOR: BLACK (UL94V-0)
• CONTACT MATERIAL: PHOSPHOR BRONZE
• BOARD LOCK: BRASS
• GOLD ON CONTACT AREA,TIN/LEAD ON SOLDERING AREA, ALL OVER NICKEL
