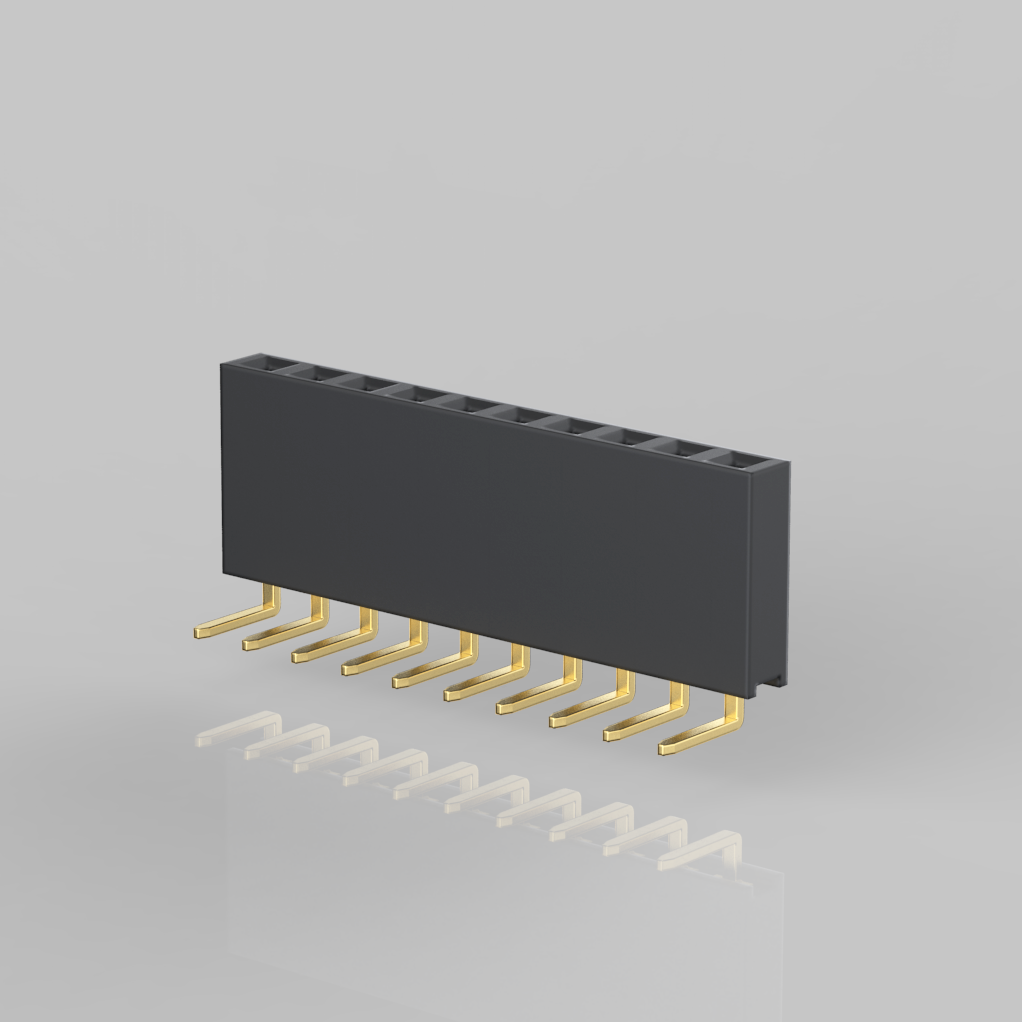

• F101-R1G_-D032-XX 2.54 Female Header 90°單排

    F101-R1G_-D032-XX 2.54 Female Header 90°單排

    SPECIFICATIONS

    • Current Rating: 3 Amp
    • Insulator Resistance: 5000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40℃ ～ +105℃
    • Contact Material: Phosphor Bronze
    • Finish: Tin,Gold or Duplex Plated
    • Standard: Gold Flash all over

    PDF

F101-R1G_-D032-XX 2.54 Female Header 90°單排

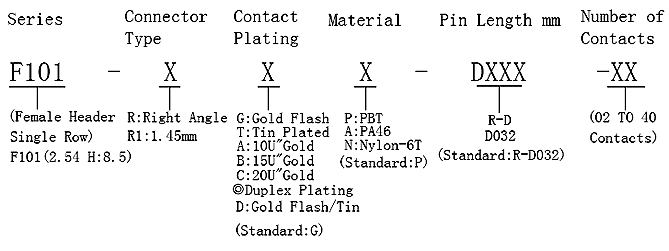

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. F101
Connector Type
Contact Plating
Material
Pin Length D032
Number of Contacts
