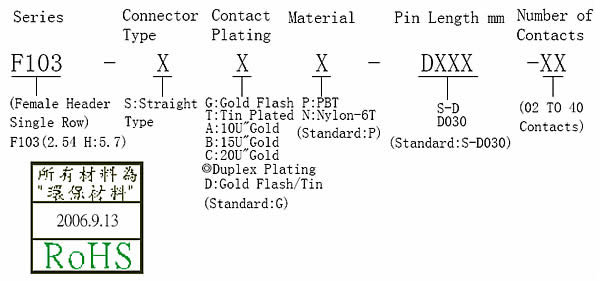

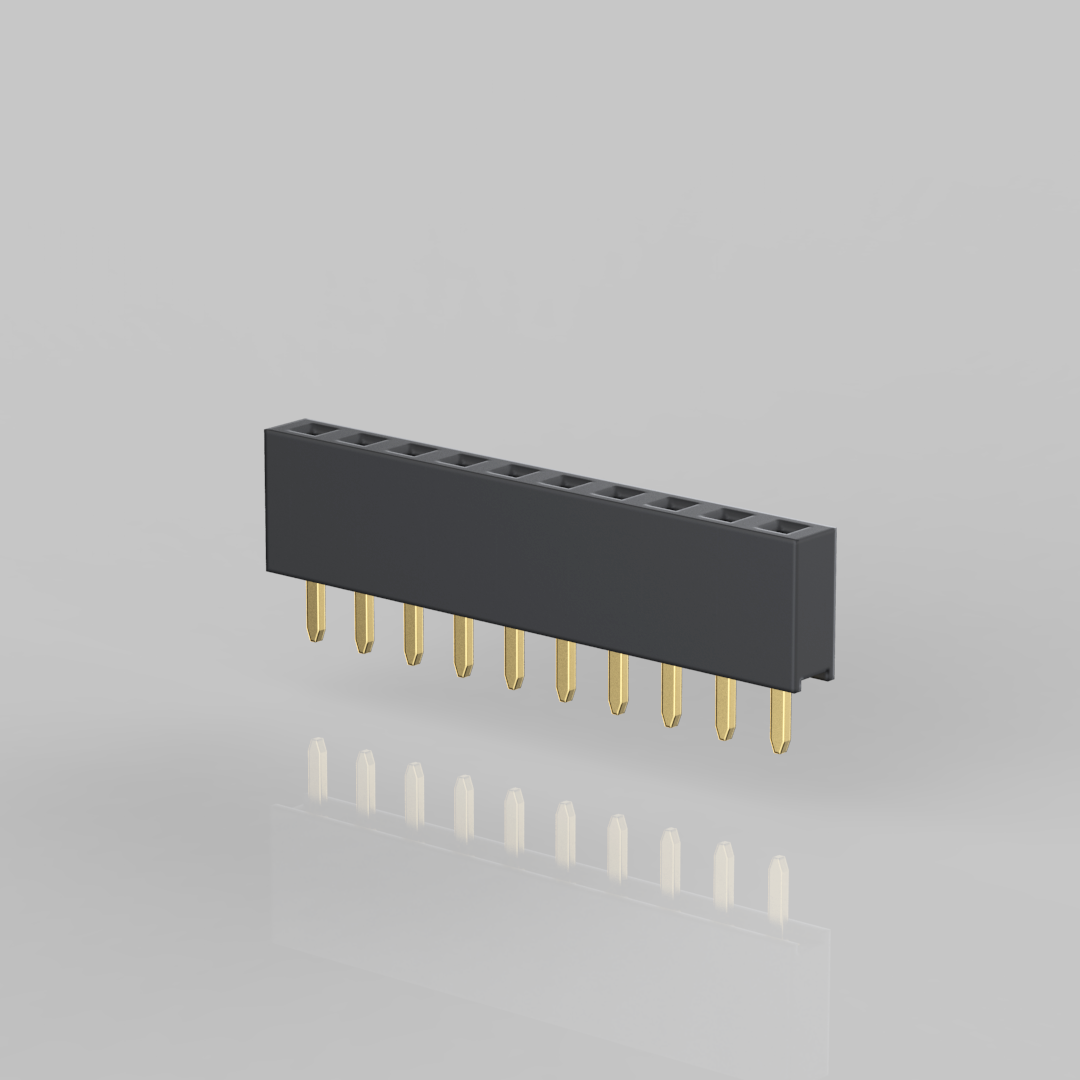

F103-SG_-D030-XX 2.54 Female Header
SPECIFICATIONS
- Current rating: 3Amp
- Insulator resistance: 5000 Megohms Min.
- Contact resistance: 20 m ohms max.
- Dielectric Withstanding: AC 1000 V
- Operating Temperature: -40°C~+105°C
- Contact Material: Phosphor Bronze.
- Insulator Material: Polyester, UL 94V-0
- Finish: Tin, Gold or Duplex Plated
- Standard: Gold Flash all over
