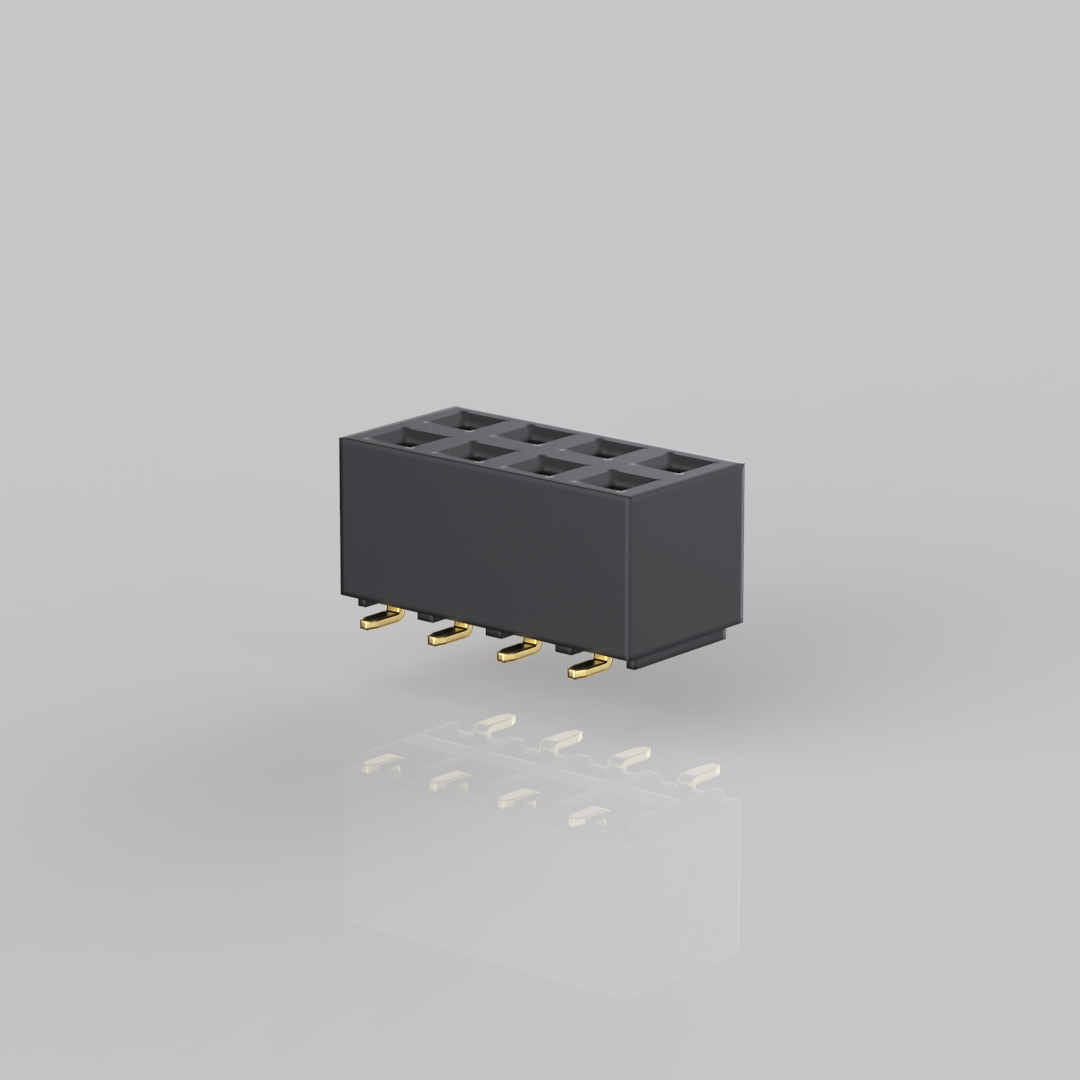

F294-MGN-D065-XX 2.54 Female Header SMT雙排
SPECIFICATIONS
- Current rating: 3Amp
- Insulator resistance: 5000 Megohms Min.
- Contact resistance: 20 m ohms max.
- Dielectric Withstanding: AC 1000 V
- Operating Temperature: -40°C~+105°C
- Max Processing Temp: 260°C for 3~5 sec Max.
- Contact Material: Phosphor Bronze
- Insulator Material: Polyester, UL 94V-0
- Standard: Nylon-6T
- Finish: Tin, Gold or Duplex Plated
- Standard: Gold Flash all over
