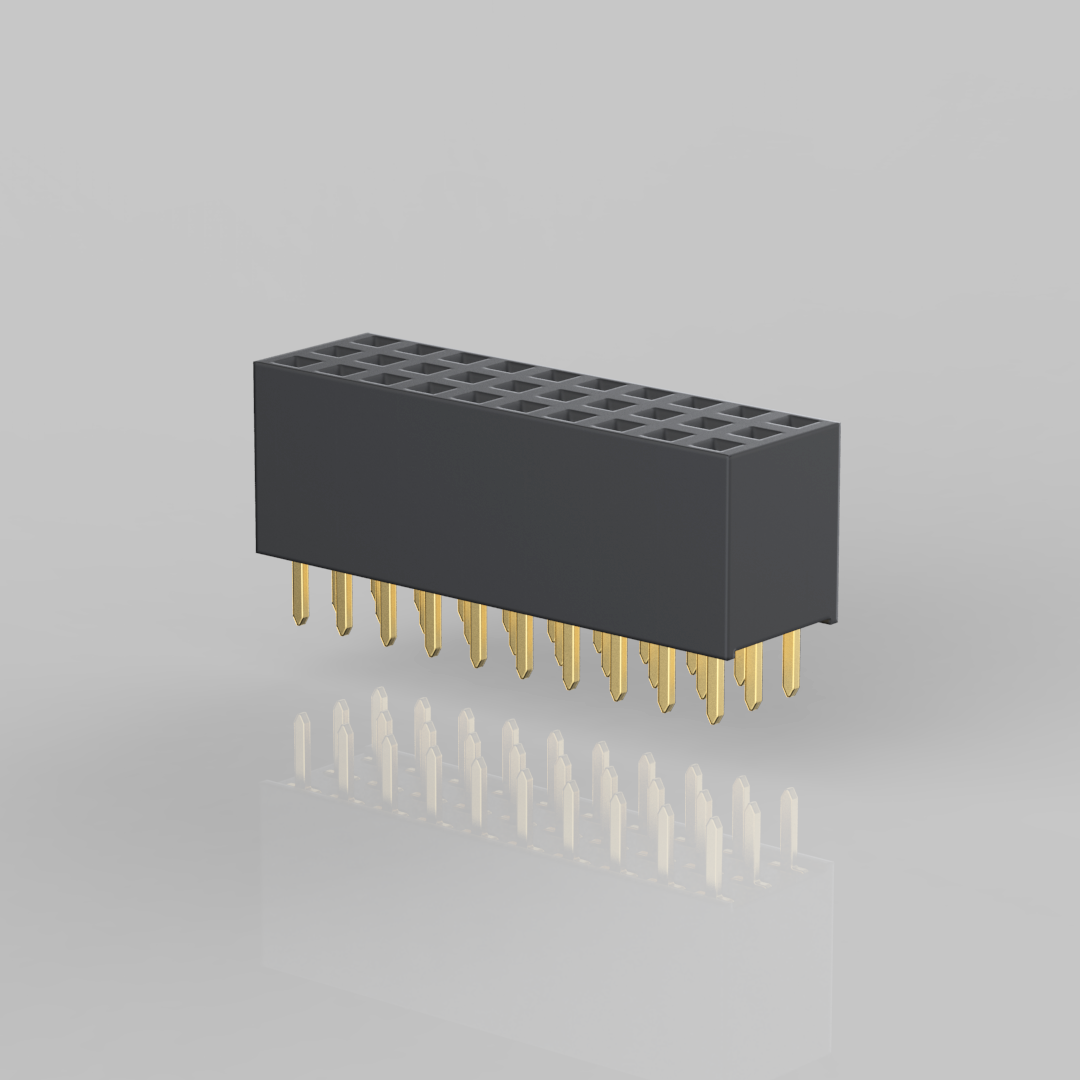

• F031-SG_-D032-XX 2.54 Female Header 180° 三排

    F031-SG_-D032-XX 2.54 Female Header 180° 三排

    SPECIFICATIONS

    • Current rating: 3Amp
    • Insulator resistance: 5000 Megohms Min.
    • Contact resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 1000 V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: P.B.T.
    • Finish: Tin, Gold or Duplex Plated
    • Standard: Gold Flash all over

    PDF

F031-SG_-D032-XX 2.54 Female Header 180° 三排

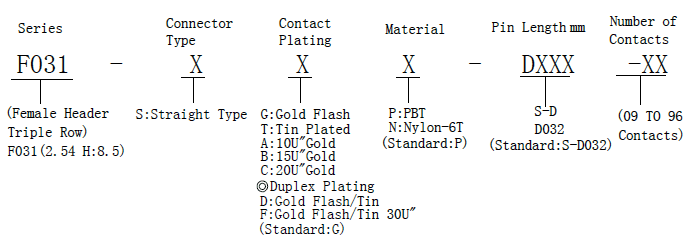

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. F031
Connector Type S: Straight Type
Contact Plating
Material
Pin Length D032
Number of Contacts
