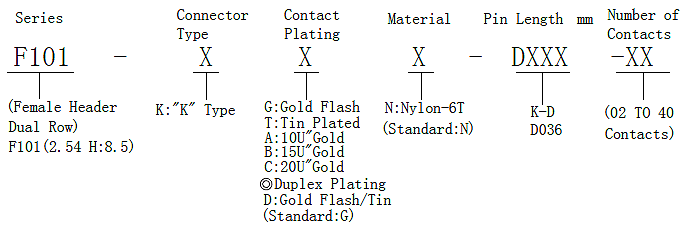

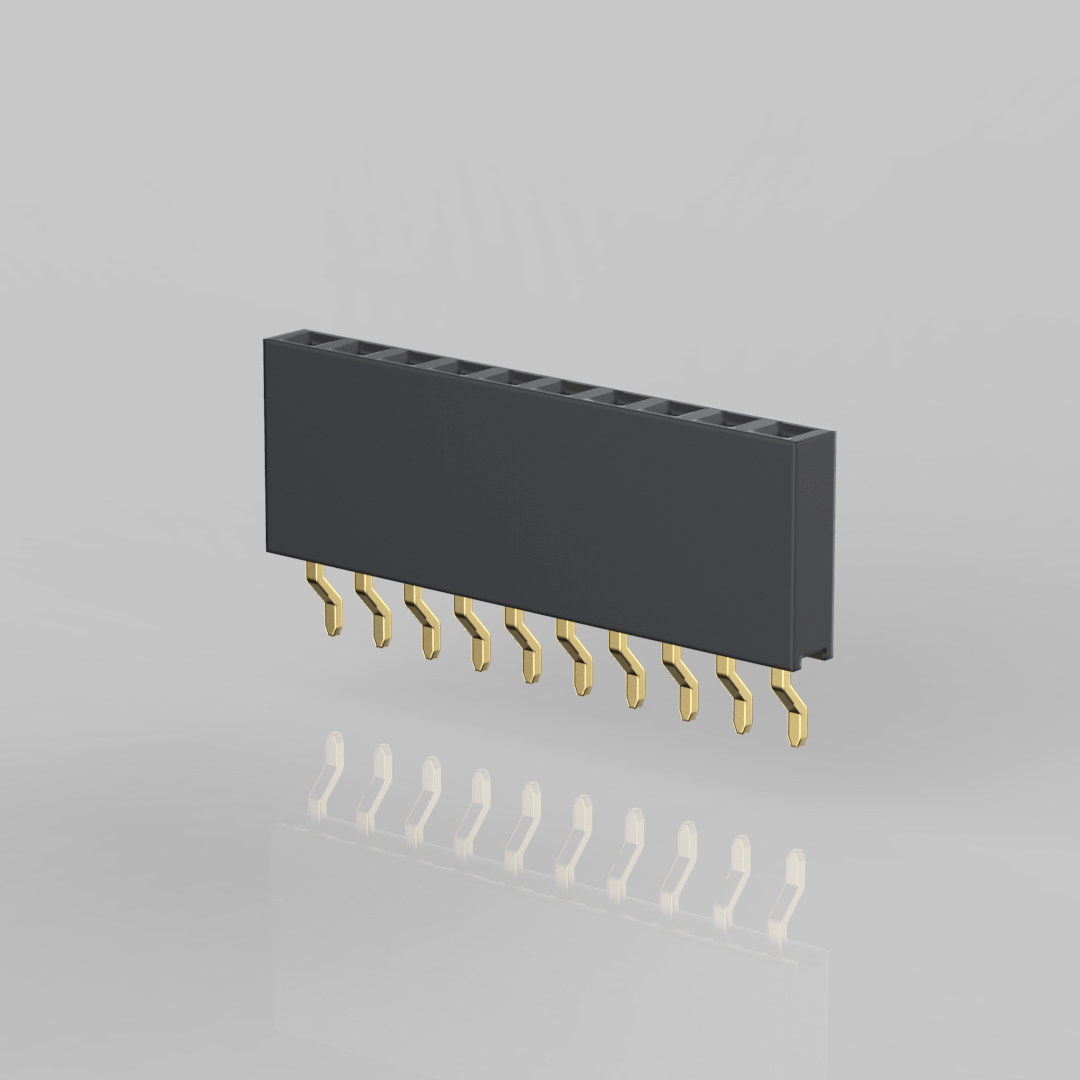

F101-KEN-D036-XX 2.54 Female Header 臥貼單排
SPECIFICATIONS
- Current Rating: 3Amp
- Insulator Resistance: 5000 Megohms Min.
- Contact Resistance: 20 m ohms max.
- Dielectric Withstanding: AC 1000 V
- Operating Temperature: -40℃ ～ +105℃
- Contact Material: Phosphor Bronze
- Insulator Material: Polyesterl, UL 94V-0
- Finish: Tin,Gold or Duplex Plated
- Standard: Gold Flash all over
