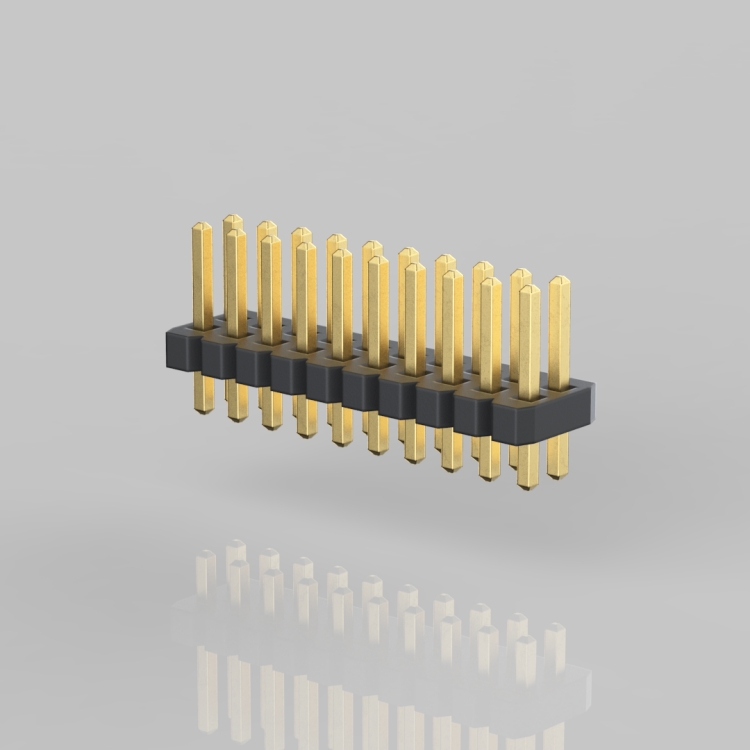

• P605-SGN-XXX/XXX-XX 1.27mm(0.05")Pitch Pin Header Series

    P605-SGN-XXX/XXX-XX 1.27mm(0.05")Pitch Pin Header Series

    SPECIFICATIONS

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Dielectric Withstanding :AC 500 V
    • Operating Temperature :-40 °C 〜 +105℃
    • Contact Material :Copper Alloy
    • Insulator Material :Polyester,UL 94V-0
    • Standard :Nylon-6T
    • Finish :Gold Plated
    • Standard :Gold Flash all over

    PDF

P605-SGN-XXX/XXX-XX 1.27mm(0.05")Pitch Pin Header Series

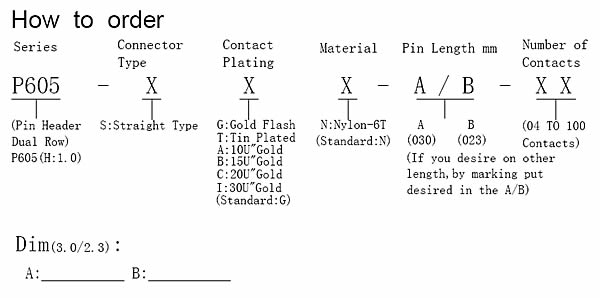

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P605
Connector Type S=Straight Type
Contact Plating
Material N:Nylon-6T
Dim A
Dim B
Number of Contacts
See Catalog
