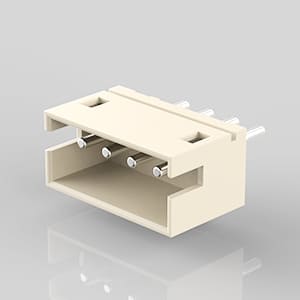

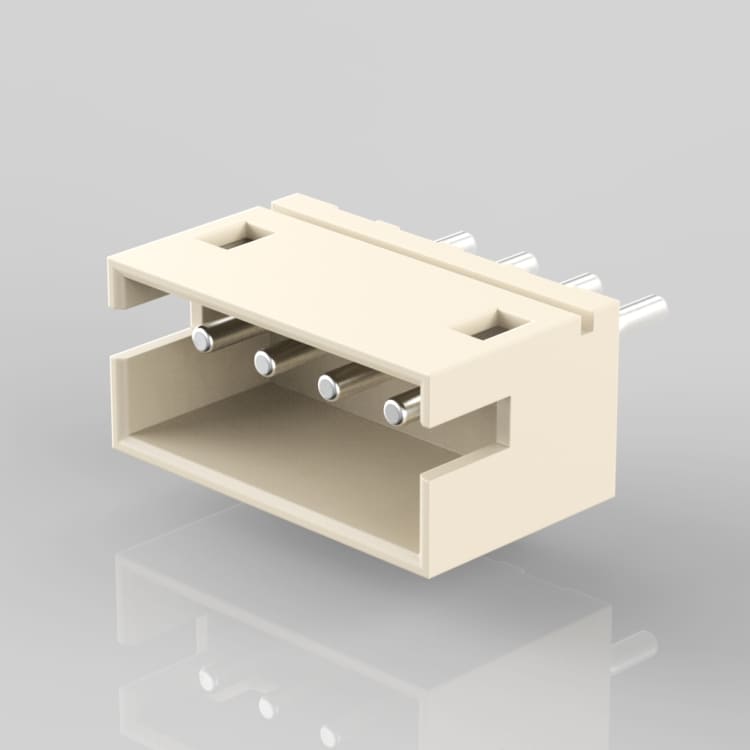

• CCZ-W150-XX

    CCZ-W150-XX

    SPECIFICATIONS
    • Current rang: 1A AC, DC
    • Voltage rating: 100V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 500MΩMin
    • Withstanding voltage: 500V AC/minute
    • Pin Material :Brass
    • Finished :Tin-plated
    • Housing Material: Nylon-66、UL94V-0
    • Color: GREY

    PDF

CCZ-W150-XX

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

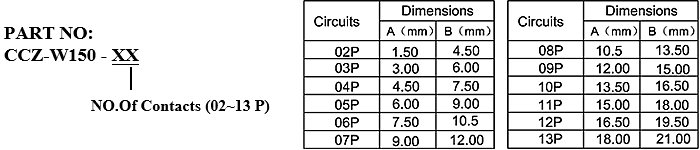

Part No. CCZ-W150
No. of Contact
