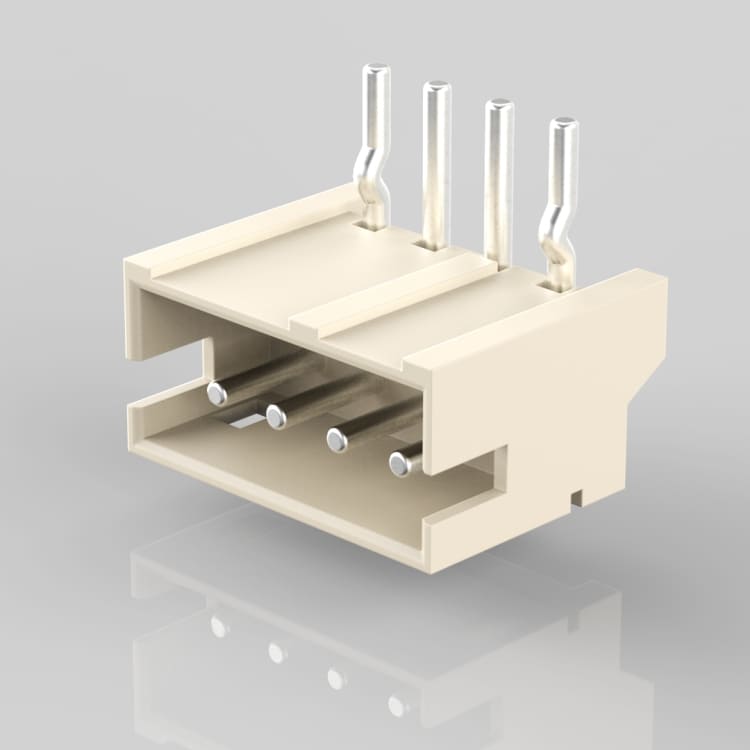

• CCZ-W150R-XX 1.5mm(0.059")Pitch Wafer Series

    CCZ-W150R-XX 1.5mm(0.059")Pitch Wafer Series

    SPECIFICATIONS
    • Current rang: 1A AC, DC
    • Voltage rating: 100V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 500MΩMin
    • Withstanding voltage: 500V AC/minute
    • Pin Material :Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-0
    • Color: GRAY

    PDF

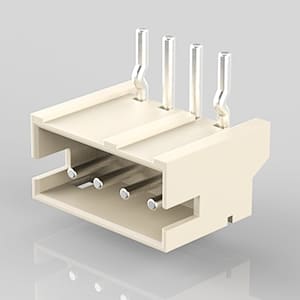

CCZ-W150R-XX 1.5mm(0.059")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

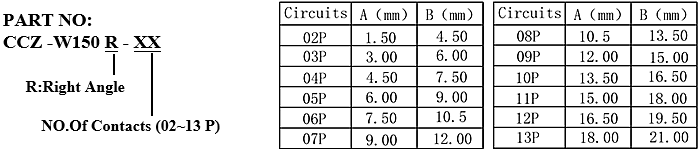

Part No. CCZ-W150
Connector Type R:Right Angle
No. of Contact
