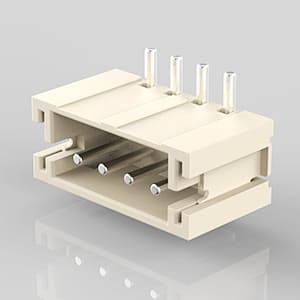

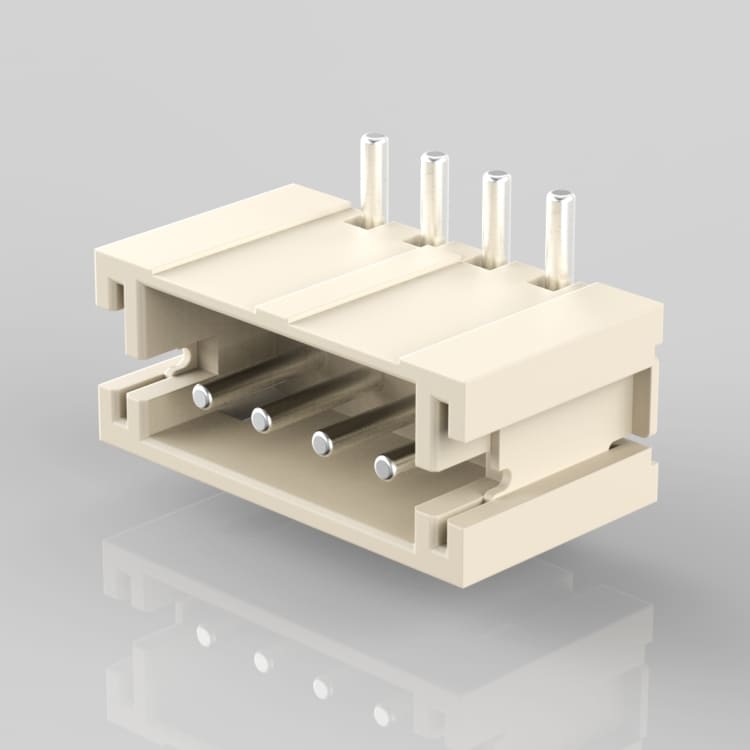

CCZ-W150-XX-SMT-RC 1.5mm(0.059")Pitch Wafer Series
SPECIFICATIONS
- Current rang: 1A AC, DC
- Voltage rating: 100V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 20mΩMax
- Insulation resistance: 500MΩMin
- Withstanding voltage: 500V AC/minute
- Finished: Tin-plated
- Housing Material: Nylon-66、Nylon-6T,UL94V-0
- Color: GREY
